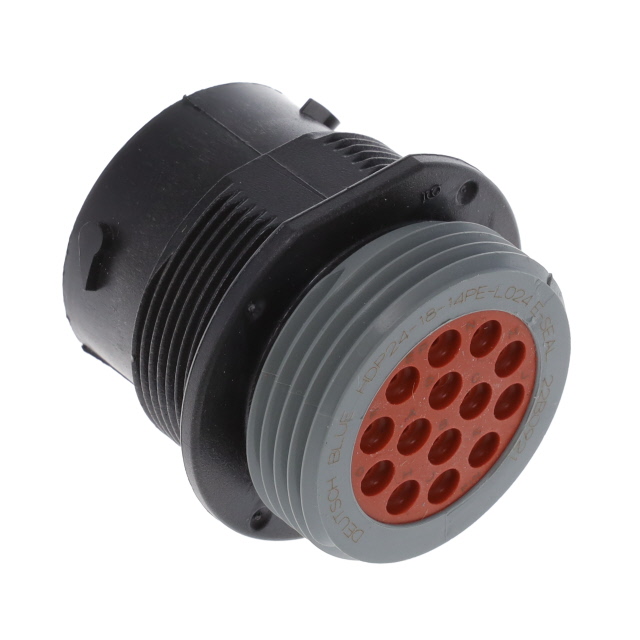

YHDP24-18-14PEL024
ActiveTE Connectivity Raychem Cable Protection
RCPT, SIZE 18, HDP, -L024
Deep-Dive with AI
Search across all available documentation for this part.
YHDP24-18-14PEL024
ActiveTE Connectivity Raychem Cable Protection
RCPT, SIZE 18, HDP, -L024
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YHDP24-18-14PEL024 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Threading Adapter |
| Housing Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetherimide (PEI) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included, Jam Nut Not Included |
| Number of Positions | 14 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Size - Insert | 18-14 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.83 | |
| 10 | $ 9.60 | |||
| 25 | $ 9.23 | |||
| 50 | $ 8.86 | |||
| 100 | $ 8.67 | |||
Description
General part information
YHDP24 Series
14 Position Circular Connector Receptacle Housing Panel Mount Threading Adapter
