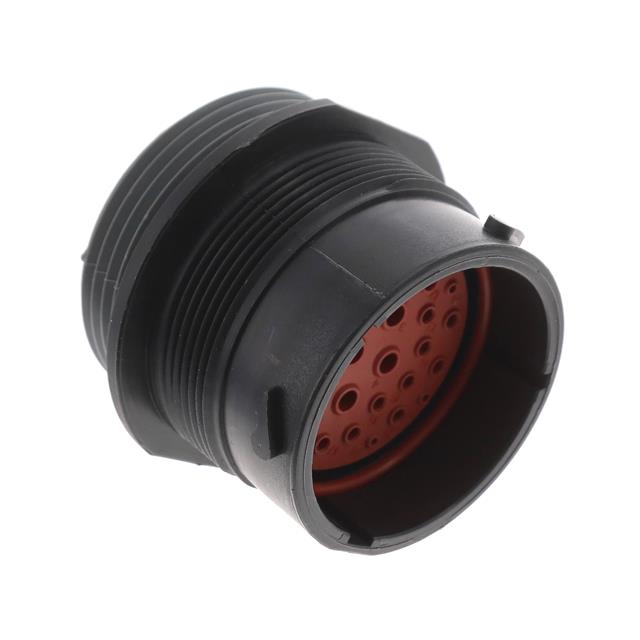

YHDP24-24-29PEL024

Active

TE Connectivity Raychem Cable Protection

RCPT, SIZE 24, HDP, -L024

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YHDP24-24-29PEL024

Active

TE Connectivity Raychem Cable Protection

RCPT, SIZE 24, HDP, -L024

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YHDP24-24-29PEL024

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20, 16, 12
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Threading Adapter
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetherimide (PEI)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	29
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size - Insert [Max] [diameter]	29
Shell Size - Insert [Min] [diameter]	24
Shielding	Unshielded
Type	For Male Pins

YHDP24 Series

Part	Note	Insert Material	Shell Size - Insert	Shell Material	Material Flammability Rating	Connector Type	Contact Shape	Contact Type	Type	Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Mounting Feature	Primary Material	Housing Color	Ingress Protection	Shielding	Fastening Type	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max] [diameter]	Contact Size
TE Connectivity Raychem Cable Protection YHDP24-18-14PEL024	Contacts Not Included Jam Nut Not Included	Polyetherimide (PEI)	18-14	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	Receptacle Housing	Circular	Crimp	For Male Pins	Keyed	Threading Adapter	-55 °C	125 °C	16	Bulkhead - Front Side Nut	Plastic	Black	IP68 - Dust Tight Waterproof	Unshielded	Bayonet Lock	14
TE Connectivity Raychem Cable Protection YHDP24-18-14PEC041	Contacts Not Included Jam Nut Not Included	Polyetherimide (PEI)	18-14	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	Receptacle Housing	Circular	Crimp	For Male Pins	Keyed		-55 °C	125 °C	16	Bulkhead - Front Side Nut	Plastic	Black	IP68 - Dust Tight Waterproof	Unshielded	Bayonet Lock	14
TE Connectivity Raychem Cable Protection YHDP24-24-31PEL024	Contacts Not Included Jam Nut Not Included	Polyetherimide (PEI)		Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-1	Receptacle Housing	Circular	Crimp	For Male Pins	Keyed	Adapter Dust Cap	-55 °C	125 °C	16	Bulkhead - Front Side Nut		Black	IP68 - Dust Tight Waterproof	Unshielded	Bayonet Lock	31	31	24
TE Connectivity Raychem Cable Protection YHDP24-24-29PEL024	Contacts Not Included Jam Nut Not Included	Polyetherimide (PEI)		Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	Receptacle Housing	Circular	Crimp	For Male Pins	Keyed	Threading Adapter	-55 °C	125 °C	12 16 20	Bulkhead - Front Side Nut	Plastic	Black	IP68 - Dust Tight Waterproof	Unshielded	Bayonet Lock	29			24	29
TE Connectivity Raychem Cable Protection YHDP24-24-19PEL024	Contacts Not Included Jam Nut Not Included	Polyetherimide (PEI)	24-19	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	Receptacle Housing	Circular	Crimp	For Male Pins	Keyed	Threading Adapter	-55 °C	125 °C	12 16	Bulkhead - Front Side Nut	Plastic	Black	IP68 - Dust Tight Waterproof	Unshielded	Bayonet Lock	19					6 13

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.68
		10	$ 10.13
		30	$ 9.79

Description

General part information

YHDP24 Series

29 Position Circular Connector Receptacle Housing Panel Mount Threading Adapter
