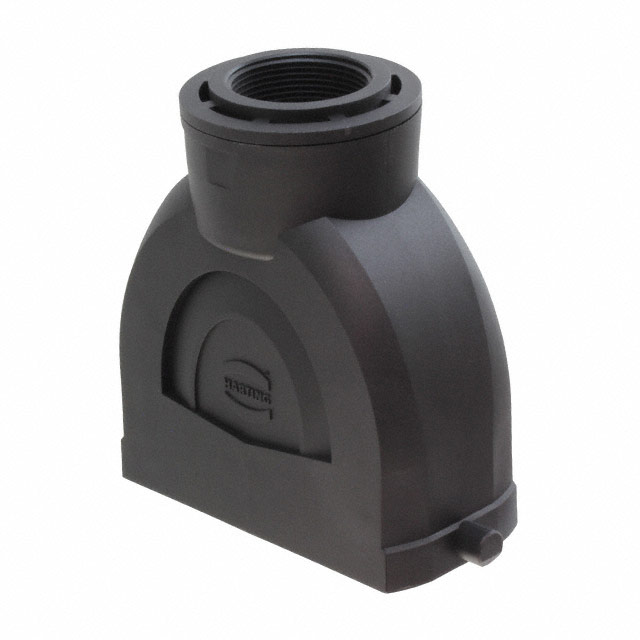

19430160447 - 19430160447

19430160447

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, IP66, M32, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 16B

Deep-Dive with AI

Search across all available documentation for this part.

19430160447 - 19430160447

19430160447

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, IP66, M32, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 16B

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification19430160447
Connector TypeHood
Housing ColorBlack
Housing MaterialPolyamide (PA), Nylon, Glass Filled
Ingress ProtectionIP66
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size16 B
StyleTop Entry
Thread SizeM32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 47.15
10$ 35.03
25$ 31.53
50$ 29.27
100$ 27.28
250$ 25.02
NewarkEach 1$ 37.80
5$ 34.30
10$ 30.80
25$ 28.40
50$ 26.71
100$ 25.11

Description

General part information

19430160 Series

Han-Eco® B is a new series of high-performance plastic hoods and housings, which are suitable for both indoor and outdoor applications. The range complies with standards IEC 61948 and EN 45545-2, offers IP66 protection and substantial weight savings compared to traditional metal housings. With Han-Eco® B, you also have the ability to rear mount inserts. Instead of installing cables through the bulkhead mounted housing, pre-assembled inserts can be directly snapped into the housing from the rear. Both monobloc and modular inserts can be used with the Han-Eco® B, giving you an unparalleled choice of data, signal and power options.
