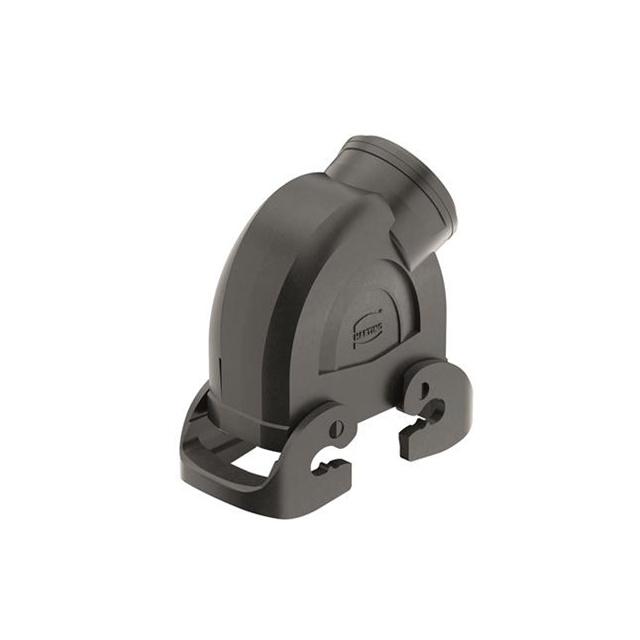

HEAVY DUTY CONNECTOR, M40, HOOD, SIDE ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 16B

Deep-Dive with AI

Search across all available documentation for this part.

Documents19430160538 Datasheet Datasheet +2

19430160538

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M40, HOOD, SIDE ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 16B

Deep-Dive with AI

Documents19430160538 Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19430160538

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Style	Side Entry

19430160 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Ingress Protection	Lock Location	Style	Size	Housing Color	Housing Material	Thread Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 19430160538	125 °C	-40 °C	Hood	IP66	Locking Clip (2) on Hood	Side Entry	16 B	Black	Polyamide (PA) Nylon Glass Filled
HARTING Technology Group 19430160447	125 °C	-40 °C	Hood	IP66	Locking Clip (1) on Base Bottom	Top Entry	16 B	Black	Polyamide (PA) Nylon Glass Filled	M32
HARTING Technology Group 19430160271	125 °C	-40 °C	Base - Box Mount	IP66	Locking Clip (2) on Base Bottom	Side Entry	16 B	Black	Polyamide (PA) Nylon Glass Filled	M25	118 mm	4.646 in	88 mm	3.465 "	2.559 in	65 mm
HARTING Technology Group 19430160256	125 °C	-40 °C	Base - Box Mount	IP66	Locking Clip (1) on Base Bottom	Side Entry	16 B	Black	Polyamide (PA) Nylon Glass Filled	M25	118 mm	4.646 in	88 mm	3.465 "	2.559 in	65 mm	Cover
HARTING Technology Group 19430160291	125 °C	-40 °C	Base - Box Mount	IP66	Locking Clip (1) on Base Bottom	Side Entry	16 B	Black	Polyamide (PA) Nylon Glass Filled	M25	118 mm	4.646 in	88 mm	3.465 "	2.559 in	65 mm	Feed Through
HARTING Technology Group 19430160320	125 °C	-40 °C	Base - Panel Mount	IP66	Locking Clip (2) on Base Bottom	Bottom Entry	16 B	Black	Polyamide (PA) Nylon Glass Filled		114.5 mm	4.508 in		1.421 "	2.362 in			36.1 mm	60 mm
HARTING Technology Group 19430160527	125 °C	-40 °C	Hood	IP66	Locking Clip (2) on Base Bottom	Side Entry	16 B	Black	Polyamide (PA) Nylon Glass Filled	M32
