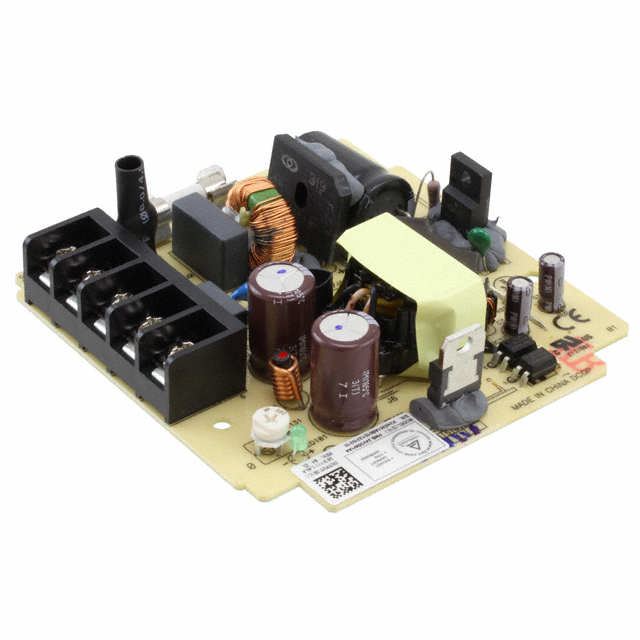

PMB-24V35W1AA

Obsolete

Delta Electronics

AC/DC CONVERTER 24V 35W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 24V 35W

Technical Specifications

Parameters and characteristics for this part

Specification	PMB-24V35W1AA

Applications	ITE (Commercial)
Approval Agency	CCC, CE, cURus, TUVgs, CB
Current - Output 1	1.46 A
Efficiency	85 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	35 W
Size / Dimension [x]	98 mm
Size / Dimension [x]	3.86 in
Size / Dimension [y]	98 mm
Size / Dimension [y]	3.86 in
Size / Dimension [z]	37.5 mm
Size / Dimension [z]	1.48 "
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Voltage - Isolation	Number of Outputs	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Applications	Mounting Type	Features	Power (Watts)	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Efficiency	Size / Dimension [z]	Size / Dimension [y]
Delta Electronics PMB-24V50W1AH	3000 V	1	Enclosed	-10 °C	70 °C	2.1 A	ITE (Commercial)	Chassis Mount	Adjustable Output Universal Input	50 W	CB CCC CE cURus TUV	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm	24 V	86 %
Delta Electronics PMB-24V35W1AA	3000 V	1	Open Frame	-10 °C	70 °C	1.46 A	ITE (Commercial)	Chassis Mount	Adjustable Output Universal Input	35 W	CB CCC CE cURus TUVgs	3.86 in	3.86 in	1.48 "	98 mm			24 V	85 %	37.5 mm	98 mm
Delta Electronics PMB-24V35W1AH	3000 V	1	Enclosed	-10 °C	70 °C	1.46 A	ITE (Commercial)	Chassis Mount	Adjustable Output Universal Input	35 W	CB CCC CE cURus TUV	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm	24 V	85 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
