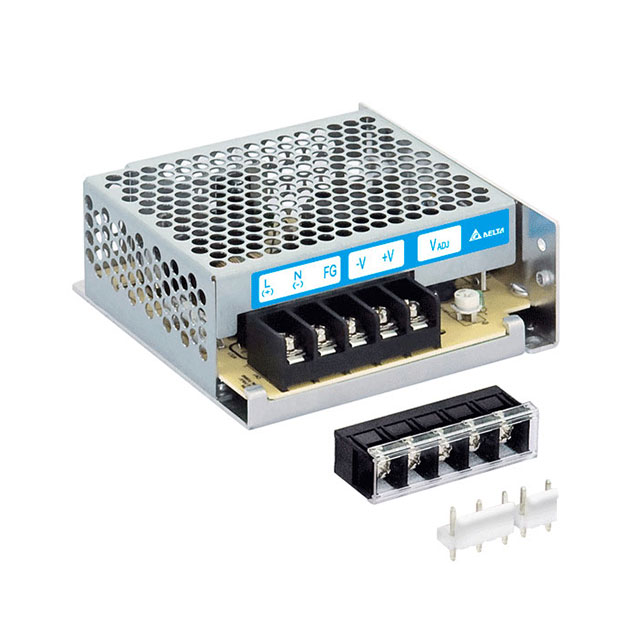

PMB-24V50W1AH
ObsoleteDelta Electronics
AC/DC CONVERTER 24V 50W
Deep-Dive with AI
Search across all available documentation for this part.
PMB-24V50W1AH
ObsoleteDelta Electronics
AC/DC CONVERTER 24V 50W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMB-24V50W1AH |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, cURus, CB, CCC, CE |
| Current - Output 1 | 2.1 A |
| Efficiency | 86 % |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 3.86 in |
| Size / Dimension [x] | 98 mm |
| Size / Dimension [y] | 3.86 in |
| Size / Dimension [y] | 98 mm |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Type | Enclosed |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
PMB-24 Series
| Part | Voltage - Isolation | Number of Outputs | Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Applications | Mounting Type | Features | Power (Watts) | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Efficiency | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 3000 V | 1 | Enclosed | -10 °C | 70 °C | 2.1 A | ITE (Commercial) | Chassis Mount | Adjustable Output Universal Input | 50 W | CB CCC CE cURus TUV | 3.86 in | 3.86 in | 1.5 " | 98 mm | 98 mm | 38 mm | 24 V | 86 % | ||
Delta Electronics | 3000 V | 1 | Open Frame | -10 °C | 70 °C | 1.46 A | ITE (Commercial) | Chassis Mount | Adjustable Output Universal Input | 35 W | CB CCC CE cURus TUVgs | 3.86 in | 3.86 in | 1.48 " | 98 mm | 24 V | 85 % | 37.5 mm | 98 mm | ||
Delta Electronics | 3000 V | 1 | Enclosed | -10 °C | 70 °C | 1.46 A | ITE (Commercial) | Chassis Mount | Adjustable Output Universal Input | 35 W | CB CCC CE cURus TUV | 3.86 in | 3.86 in | 1.5 " | 98 mm | 98 mm | 38 mm | 24 V | 85 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PMB-24 Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
