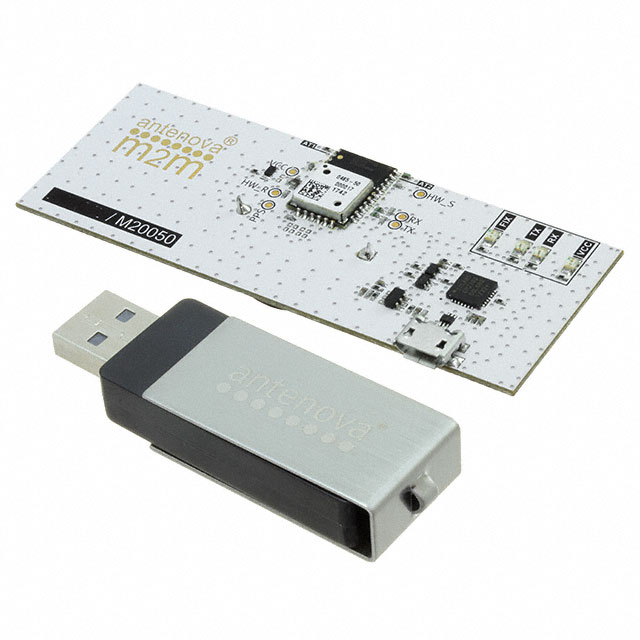

M20050-EVB-1

Active

Antenova

M20050-1 EVALUATION BOARD

Search across all available documentation for this part.

Active

Antenova

M20050-1 EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	M20050-EVB-1

For Use With/Related Products	MT3333
Frequency [Max]	1.609 GHz
Frequency [Min]	1.559 GHz
Supplied Contents	Board(s)
Type	GNSS (Beidou, Galileo, GLONASS, GPS)

Part	Modulation or Protocol	Frequency	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Connector	Package / Case	Current - Receiving	Data Interface	Sensitivity	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Type	Supplied Contents
Antenova M20050-1	BeiDou Galileo GLONASS GNSS GPS	1.575 GHz	Module	85 °C	-40 °C	Surface Mount	General Purpose	2.8 V	4.3 V	On-Board Trace	Module	29 mA	UART	-165 dBm
Antenova M20050-EVB-1															1.609 GHz	1.559 GHz	MT3333	GNSS (Beidou Galileo GLONASS GPS)	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 123.75

General part information

RADIONOVA® MT3333 GNSS (Beidou, Galileo, GLONASS, GPS) 1.559GHz ~ 1.609GHz Evaluation Board
