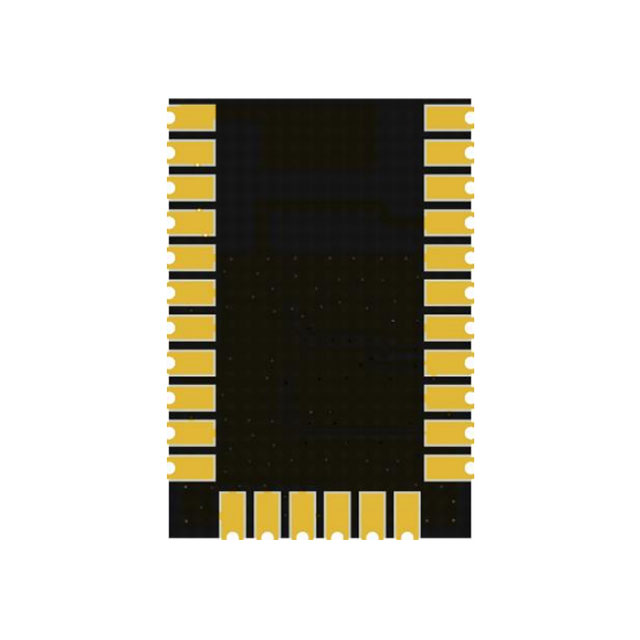

M20050-1
ActiveAntenova
RF RCVR GNSS/GPS 1.575GHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
M20050-1
ActiveAntenova
RF RCVR GNSS/GPS 1.575GHZ MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M20050-1 |
|---|---|
| Antenna Connector | On-Board, Trace |
| Applications | General Purpose |
| Current - Receiving | 29 mA |
| Data Interface | UART |
| Frequency | 1.575 GHz |
| Modulation or Protocol | GNSS, Galileo, BeiDou, GLONASS, GPS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Sensitivity | -165 dBm |
| Supplier Device Package | Module |
| Voltage - Supply [Max] | 4.3 V |
| Voltage - Supply [Min] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 23.88 | |
| 10 | $ 18.75 | |||
| 25 | $ 17.25 | |||
| 100 | $ 15.43 | |||
| 250 | $ 14.48 | |||
| 500 | $ 13.87 | |||
| Digi-Reel® | 1 | $ 23.88 | ||
| 10 | $ 18.75 | |||
| 25 | $ 17.25 | |||
| 100 | $ 15.43 | |||
| 250 | $ 14.48 | |||
| 500 | $ 13.87 | |||
| Tape & Reel (TR) | 1000 | $ 12.00 | ||
Description
General part information
M20050 Series
RADIONOVA® RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.575GHz -165dBm On-Board, Trace Module
