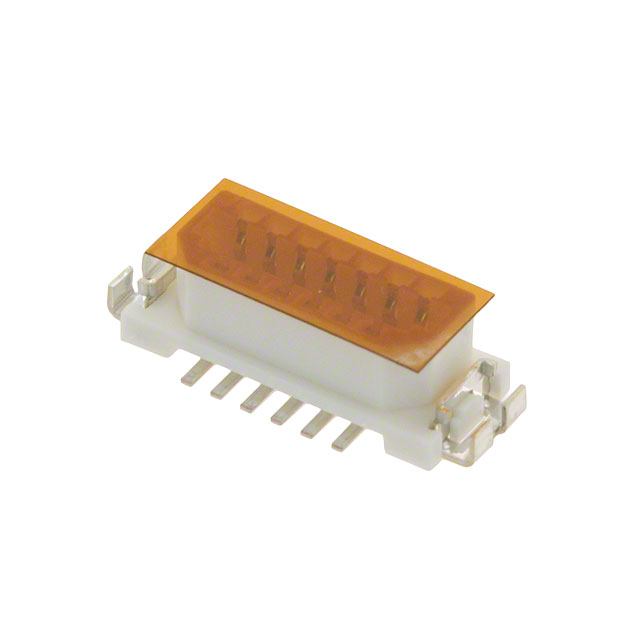

DF9B-13S-1V(32)
ActiveHirose Electric USA, Inc.
BOARD CONNECTOR, 13 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SURFACE MOUNT TERMINAL, RECEPTACLE,
Deep-Dive with AI
Search across all available documentation for this part.
DF9B-13S-1V(32)
ActiveHirose Electric USA, Inc.
BOARD CONNECTOR, 13 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SURFACE MOUNT TERMINAL, RECEPTACLE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF9B-13S-1V(32) |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Tin |
| Contact Finish Thickness | 39.4 Áin |
| Contact Finish Thickness | 1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mated Stacking Heights [z] | 4.3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 13 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
DF9B Series
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Rows | Mated Stacking Heights [z] | Pitch [x] | Pitch [x] | Features | Height Above Board | Height Above Board | Contact Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Surface Mount | 39.4 Áin | 1 Ám | Header Center Strip Contacts | 2 | 4.3 mm | 0.039 in | 1 mm | Solder Retention | 0.13 in | 3.3 mm | Tin | 23 |
Hirose Electric USA, Inc. | Surface Mount | Header Center Strip Contacts | 2 | 4.3 mm | 0.039 in | 1 mm | Solder Retention | 0.13 in | 3.3 mm | Tin | 15 | ||
Hirose Electric USA, Inc. | |||||||||||||
Hirose Electric USA, Inc. | Surface Mount | 8 çin | 0.203 çm | Header Center Strip Contacts | 2 | 4.3 mm | 0.039 in | 1 mm | Solder Retention | 0.13 in | 3.3 mm | Gold | 31 |
Hirose Electric USA, Inc. | Surface Mount | Receptacle Outer Shroud Contacts | 2 | 4.3 mm | 0.039 in | 1 mm | Solder Retention | 0.13 in | 3.3 mm | Tin | 31 | ||
Hirose Electric USA, Inc. | Surface Mount | 39.4 Áin | 1 Ám | Header Center Strip Contacts | 2 | 4.3 mm | 0.039 in | 1 mm | Solder Retention | 0.13 in | 3.3 mm | Tin | 19 |
Hirose Electric USA, Inc. | Surface Mount | 39.4 Áin | 1 Ám | Receptacle Outer Shroud Contacts | 2 | 4.3 mm | 0.039 in | 1 mm | Solder Retention | 0.13 in | 3.3 mm | Tin | 23 |
Hirose Electric USA, Inc. | Surface Mount | 8 çin | 0.203 çm | Receptacle Outer Shroud Contacts | 2 | 4.3 mm | 0.039 in | 1 mm | Solder Retention | 0.13 in | 3.3 mm | Gold | 51 |
Hirose Electric USA, Inc. | Surface Mount | Header Center Strip Contacts | 2 | 4.3 mm | 0.039 in | 1 mm | Solder Retention | 0.13 in | 3.3 mm | Tin | 41 | ||
Hirose Electric USA, Inc. | Surface Mount | 39.4 Áin | 1 Ám | Receptacle Outer Shroud Contacts | 2 | 4.3 mm | 0.039 in | 1 mm | Solder Retention | 0.13 in | 3.3 mm | Tin | 13 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.13 | |
| Digi-Reel® | 1 | $ 1.13 | ||
| Tape & Reel (TR) | 1000 | $ 0.61 | ||
Description
General part information
DF9B Series
13 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Tin
