DF9B-51S-1V(69)

Active

Hirose Electric USA, Inc.

CONN RCPT 51POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF9 Series Datasheet

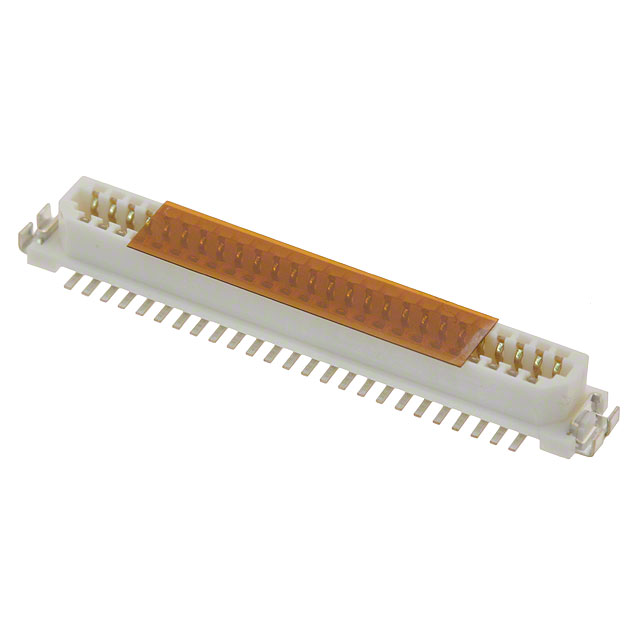

DF9B-51S-1V(69)

Active

Hirose Electric USA, Inc.

CONN RCPT 51POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet DF9 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF9B-51S-1V(69)

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Solder Retention
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mated Stacking Heights [z]	4.3 mm
Mounting Type	Surface Mount
Number of Positions	51
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

DF9B Series

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Mated Stacking Heights [z]	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board	Contact Finish	Number of Positions
Hirose Electric USA, Inc. DF9B-23P-1V(32)	Surface Mount	39.4 Áin	1 Ám	Header Center Strip Contacts	2	4.3 mm	0.039 in	1 mm	Solder Retention	0.13 in	3.3 mm	Tin	23
Hirose Electric USA, Inc. DF9B-15P-1V(20)	Surface Mount			Header Center Strip Contacts	2	4.3 mm	0.039 in	1 mm	Solder Retention	0.13 in	3.3 mm	Tin	15
Hirose Electric USA, Inc. DF9B-41P-1V(33)
Hirose Electric USA, Inc. DF9B-31P-1V(69)	Surface Mount	8 çin	0.203 çm	Header Center Strip Contacts	2	4.3 mm	0.039 in	1 mm	Solder Retention	0.13 in	3.3 mm	Gold	31
Hirose Electric USA, Inc. DF9B-31S-1V(20)	Surface Mount			Receptacle Outer Shroud Contacts	2	4.3 mm	0.039 in	1 mm	Solder Retention	0.13 in	3.3 mm	Tin	31
Hirose Electric USA, Inc. DF9B-19P-1V(32)	Surface Mount	39.4 Áin	1 Ám	Header Center Strip Contacts	2	4.3 mm	0.039 in	1 mm	Solder Retention	0.13 in	3.3 mm	Tin	19
Hirose Electric USA, Inc. DF9B-23S-1V(32)	Surface Mount	39.4 Áin	1 Ám	Receptacle Outer Shroud Contacts	2	4.3 mm	0.039 in	1 mm	Solder Retention	0.13 in	3.3 mm	Tin	23
Hirose Electric USA, Inc. DF9B-51S-1V(69)	Surface Mount	8 çin	0.203 çm	Receptacle Outer Shroud Contacts	2	4.3 mm	0.039 in	1 mm	Solder Retention	0.13 in	3.3 mm	Gold	51
Hirose Electric USA, Inc. DF9B-41P-1V(22)	Surface Mount			Header Center Strip Contacts	2	4.3 mm	0.039 in	1 mm	Solder Retention	0.13 in	3.3 mm	Tin	41
Hirose Electric USA, Inc. DF9B-13S-1V(32)	Surface Mount	39.4 Áin	1 Ám	Receptacle Outer Shroud Contacts	2	4.3 mm	0.039 in	1 mm	Solder Retention	0.13 in	3.3 mm	Tin	13

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.68
	Digi-Reel®	1	$ 2.68
	Tape & Reel (TR)	1000	$ 1.51

Description

General part information

DF9B Series

51 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

DF9 Series Datasheet

Datasheet
