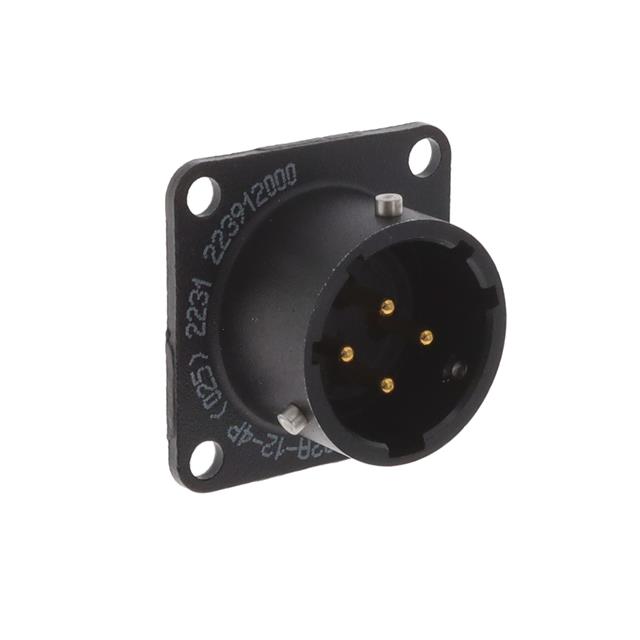

PT02A12-4P-025
ActiveAmphenol Industrial Operations
PT 4C 4#16 PIN RECP
Deep-Dive with AI
Search across all available documentation for this part.
PT02A12-4P-025
ActiveAmphenol Industrial Operations
PT 4C 4#16 PIN RECP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT02A12-4P-025 |
|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Backshell Material, Plating | Black Zinc Cobalt, Aluminum |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Black Zinc Cobalt |
| Shell Material | Aluminum |
| Shell Size - Insert | 12-4 |
| Shielding | Unshielded |
| Voltage Rating | 600 VAC |
PT02A Series
| Part | Shell Finish | Contact Finish - Mating | Shell Material | Primary Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Fastening Type | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] | Qualification | Applications | Insert Material | Number of Positions | Mounting Feature | Shielding | Orientation | Backshell Material, Plating | Color | Shell Size - Insert | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Number of Positions | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | Black Zinc Cobalt | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Male Pins Receptacle | Bayonet Lock | 20 | 16 | MIL-DTL-26482 Series I | Aerospace Industrial Instrumentation Mass Transit Military | Neoprene | 16 | Flange | Unshielded | N | Aluminum Black Zinc Cobalt | Black | |||||
Amphenol Industrial Operations | Black Zinc Cobalt | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Male Pins Receptacle | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace Industrial Instrumentation Mass Transit Military | Neoprene | Flange | Unshielded | N | Aluminum Black Zinc Cobalt | Black | 14-5 | |||||||
Amphenol Industrial Operations | Olive Drab Chromate over Cadmium | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace Industrial Instrumentation Mass Transit Military | Neoprene | Flange | Unshielded | N | Aluminum Olive Drab Cadmium | Olive Drab | 14 | 15 | 15 | |||||
Amphenol Industrial Operations | Olive Drab Chromate over Cadmium | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Male Pins Receptacle | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace Industrial Instrumentation Mass Transit Military | Neoprene | Flange | Unshielded | N | Aluminum Olive Drab Cadmium | Olive Drab | 12-4 | 4 | ||||||
Amphenol Industrial Operations | Olive Drab Chromate over Cadmium | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace Industrial Instrumentation Mass Transit Military | Neoprene | Flange | Unshielded | N | Aluminum Olive Drab Cadmium | Olive Drab | 18 | 32 | ||||||
Amphenol Industrial Operations | Black Zinc Cobalt | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Male Pins Receptacle | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace Industrial Instrumentation Mass Transit Military | Neoprene | Flange | Unshielded | N | Aluminum Black Zinc Cobalt | Black | 16 | 26 | 26 | |||||
Amphenol Industrial Operations | Olive Drab Chromate over Cadmium | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Male Pins Receptacle | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace Communication Systems Industrial Instrumentation Mass Transit | Neoprene | Flange | Unshielded | X | Aluminum Olive Drab Cadmium | Olive Drab | 14-5 | |||||||
Amphenol Industrial Operations | Olive Drab Chromate over Cadmium | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Male Pins Receptacle | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace Industrial Instrumentation Mass Transit Military | Neoprene | Flange | Unshielded | N | Aluminum Olive Drab Cadmium | Olive Drab | 14 | 15 | 15 | |||||
Amphenol Industrial Operations | Black Zinc Cobalt | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Male Pins Receptacle | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace Industrial Instrumentation Mass Transit Military | Neoprene | Flange | Unshielded | N | Aluminum Black Zinc Cobalt | Black | 12-4 | 4 | 600 VAC | |||||
Amphenol Industrial Operations | Black Zinc Cobalt | Gold | Aluminum | Metal | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace Industrial Instrumentation Mass Transit Military | Neoprene | Flange | Unshielded | N | Aluminum Black Zinc Cobalt | Black | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 31.06 | |
| 10 | $ 26.40 | |||
| 25 | $ 24.75 | |||
| 50 | $ 23.57 | |||
| 100 | $ 22.44 | |||
| 250 | $ 21.04 | |||
Description
General part information
PT02A Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
