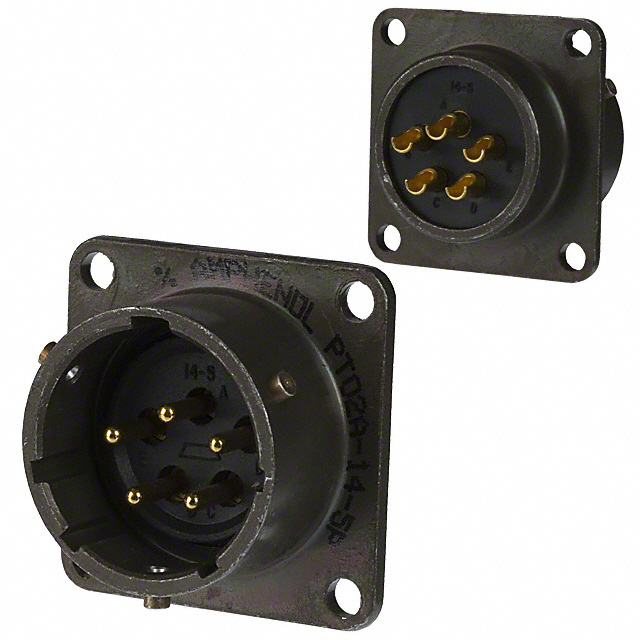

PT02A-14-5P(025)

Active

Amphenol Industrial Operations

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT02A-14-5P(025)

Active

Amphenol Industrial Operations

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT02A-14-5P(025)

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Black Zinc Cobalt, Aluminum
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Black Zinc Cobalt
Shell Material	Aluminum
Shell Size - Insert	14-5
Shielding	Unshielded

PT02A Series

Part	Shell Finish	Contact Finish - Mating	Shell Material	Primary Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Qualification	Applications	Insert Material	Number of Positions	Mounting Feature	Shielding	Orientation	Backshell Material, Plating	Color	Shell Size - Insert	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Voltage Rating
Amphenol Industrial Operations PT02A-20-16P(025)	Black Zinc Cobalt	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Male Pins Receptacle	Bayonet Lock	20	16	MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	16	Flange	Unshielded	N	Aluminum Black Zinc Cobalt	Black
Amphenol Industrial Operations PT02A-14-5P(025)	Black Zinc Cobalt	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Male Pins Receptacle	Bayonet Lock			MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Flange	Unshielded	N	Aluminum Black Zinc Cobalt	Black	14-5
Amphenol Industrial Operations PT02A-14-15S	Olive Drab Chromate over Cadmium	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets	Bayonet Lock			MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Flange	Unshielded	N	Aluminum Olive Drab Cadmium	Olive Drab		14	15	15
Amphenol Industrial Operations PT02A-12-4P	Olive Drab Chromate over Cadmium	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Male Pins Receptacle	Bayonet Lock			MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Flange	Unshielded	N	Aluminum Olive Drab Cadmium	Olive Drab	12-4			4
Amphenol Industrial Operations PT02A-18-32S	Olive Drab Chromate over Cadmium	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets	Bayonet Lock			MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Flange	Unshielded	N	Aluminum Olive Drab Cadmium	Olive Drab		18	32
Amphenol Industrial Operations PT02A-16-26P(025)	Black Zinc Cobalt	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Male Pins Receptacle	Bayonet Lock			MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Flange	Unshielded	N	Aluminum Black Zinc Cobalt	Black		16	26	26
Amphenol Industrial Operations PT02A14-5PX	Olive Drab Chromate over Cadmium	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Male Pins Receptacle	Bayonet Lock			MIL-DTL-26482 Series I	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene		Flange	Unshielded	X	Aluminum Olive Drab Cadmium	Olive Drab	14-5
Amphenol Industrial Operations PT02A-14-15P	Olive Drab Chromate over Cadmium	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Male Pins Receptacle	Bayonet Lock			MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Flange	Unshielded	N	Aluminum Olive Drab Cadmium	Olive Drab		14	15	15
Amphenol Industrial Operations PT02A12-4P-025	Black Zinc Cobalt	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Male Pins Receptacle	Bayonet Lock			MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Flange	Unshielded	N	Aluminum Black Zinc Cobalt	Black	12-4			4	600 VAC
Amphenol Industrial Operations PT02A-16-8S(025)	Black Zinc Cobalt	Gold	Aluminum	Metal	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets	Bayonet Lock			MIL-DTL-26482 Series I	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Flange	Unshielded	N	Aluminum Black Zinc Cobalt	Black				8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.98
		10	$ 17.32
		100	$ 14.27

Description

General part information

PT02A Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup
