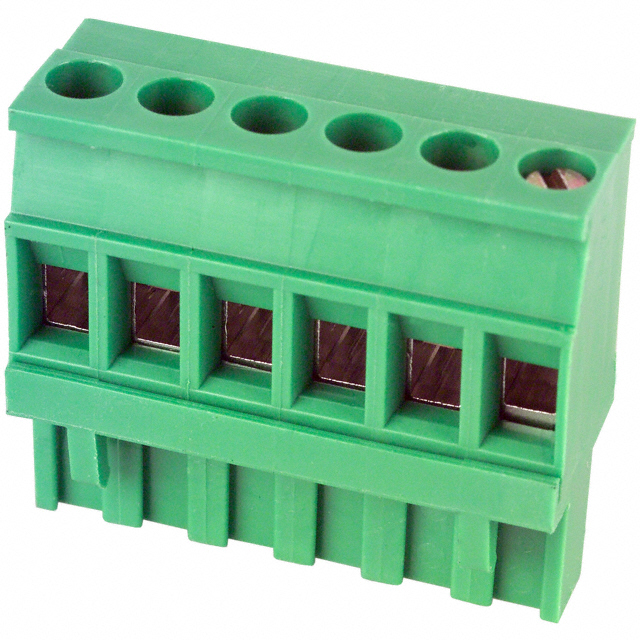

ED1100/6
ActiveOn Shore Technology Inc.
TERM BLOCK PLUG 6POS 90DEG 5MM
Deep-Dive with AI
Search across all available documentation for this part.
ED1100/6
ActiveOn Shore Technology Inc.
TERM BLOCK PLUG 6POS 90DEG 5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ED1100/6 |
|---|---|
| Color | Green |
| Contact Material | Copper Tin Alloy |
| Features | Retention Latches (Wire Side) |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height [z] | 1.043 in |
| Insulation Height [z] | 26.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Plug Wire Entry | 90 ° |
| Positions Per Level | 6 |
| Screw Size | M3 |
| Termination Style | Screw |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Type | Plug, Female Sockets |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm² | 2.5 mm² |
| Wire Strip Length | 7 mm |
ED1100 Series
| Part | Material Flammability Rating | Wire Strip Length | Features | Termination Style | Plug Wire Entry | Screw Size | Color | Number of Positions | Type | Contact Material | Insulation Height [z] | Insulation Height [z] | Number of Levels | Pitch [x] | Pitch [x] | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - UL | Housing Material | Wire Gauge or Range - mm² | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Mounting Type | Torque - Screw | Torque - Screw | Wire Gauge or Range - mm˛ | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
On Shore Technology Inc. | UL94 V-0 | 7 mm | Retention Latches (Wire Side) | Screw | 90 ° | M3 | Green | 16 | Plug Female Sockets | Copper Tin Alloy | 1.043 in | 26.5 mm | 1 | 5 mm | 0.197 in | 16 | -30 ░C | 105 ░C | 300 V | Polyamide (PA) Nylon | 2.5 mm² | 22 AWG | 10 AWG | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | ||
On Shore Technology Inc. | UL94 V-0 | 7 mm | Retention Latches (Wire Side) | Screw | 90 ° | M3 | Green | Plug Female Sockets | Copper Tin Alloy | 1.043 in | 26.5 mm | 1 | 5 mm | 0.197 in | 9 | -30 ░C | 105 ░C | 300 V | Polyamide (PA) Nylon | 22 AWG | 10 AWG | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | 2.5 mm˛ | 9 | ||
On Shore Technology Inc. | UL94 V-0 | 7 mm | Retention Latches (Wire Side) | Screw | 90 ° | M3 | Green | Plug Female Sockets | Copper Tin Alloy | 1.043 in | 26.5 mm | 1 | 5 mm | 0.197 in | 5 | -30 ░C | 105 ░C | 300 V | Polyamide (PA) Nylon | 2.5 mm² | 22 AWG | 10 AWG | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | |||
On Shore Technology Inc. | UL94 V-0 | 7 mm | Retention Latches (Wire Side) | Screw | 90 ° | M3 | Green | Plug Female Sockets | Copper Tin Alloy | 1.043 in | 26.5 mm | 1 | 5 mm | 0.197 in | 6 | -30 ░C | 105 ░C | 300 V | Polyamide (PA) Nylon | 2.5 mm² | 22 AWG | 10 AWG | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | 6 | ||
On Shore Technology Inc. | UL94 V-0 | 7 mm | Retention Latches (Wire Side) | Screw | 90 ° | M3 | Green | Plug Female Sockets | Copper Tin Alloy | 1.043 in | 26.5 mm | 1 | 5 mm | 0.197 in | 12 | -30 ░C | 105 ░C | 300 V | Polyamide (PA) Nylon | 22 AWG | 10 AWG | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | 2.5 mm˛ | 12 | ||
On Shore Technology Inc. | UL94 V-0 | 7 mm | Retention Latches (Wire Side) | Screw | 90 ° | M3 | Green | Plug Female Sockets | Copper Tin Alloy | 1.043 in | 26.5 mm | 1 | 5 mm | 0.197 in | 10 | -30 ░C | 105 ░C | 300 V | Polyamide (PA) Nylon | 22 AWG | 10 AWG | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | 2.5 mm˛ | 10 | ||
On Shore Technology Inc. | UL94 V-0 | 7 mm | Retention Latches (Wire Side) | Screw | 90 ° | M3 | Green | Plug Female Sockets | Copper Tin Alloy | 1.043 in | 26.5 mm | 1 | 5 mm | 0.197 in | 3 | -30 ░C | 105 ░C | 300 V | Polyamide (PA) Nylon | 2.5 mm² | 22 AWG | 10 AWG | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | |||
On Shore Technology Inc. | UL94 V-0 | 7 mm | Retention Latches (Wire Side) | Screw | 90 ° | M3 | Green | Plug Female Sockets | Copper Tin Alloy | 1.043 in | 26.5 mm | 1 | 5 mm | 0.197 in | 4 | -30 ░C | 105 ░C | 300 V | Polyamide (PA) Nylon | 2.5 mm² | 22 AWG | 10 AWG | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | 4 | ||
On Shore Technology Inc. | UL94 V-0 | 7 mm | Retention Latches (Wire Side) | Screw | 90 ° | M3 | Green | Plug Female Sockets | Copper Tin Alloy | 1.043 in | 26.5 mm | 1 | 5 mm | 0.197 in | 2 | -30 ░C | 105 ░C | 300 V | Polyamide (PA) Nylon | 2.5 mm² | 22 AWG | 10 AWG | Free Hanging (In-Line) | 4.4 Lb-In | 0.5 Nm | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 4.37 | |
Description
General part information
ED1100 Series
6 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
