ED1100/4

Active

On Shore Technology Inc.

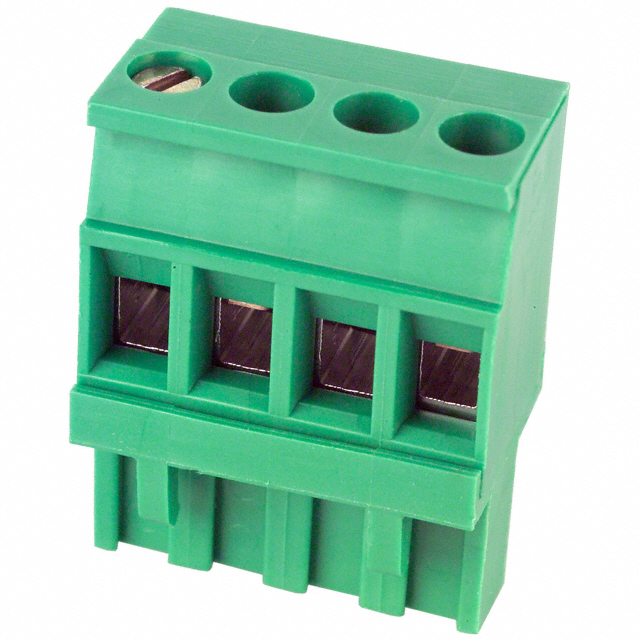

TERM BLOCK PLUG 4POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ED Part Number Breakdown

ED1100/4

Active

On Shore Technology Inc.

TERM BLOCK PLUG 4POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet ED Part Number Breakdown

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED1100/4

Color	Green
Contact Material	Copper Tin Alloy
Features	Retention Latches (Wire Side)
Housing Material	Polyamide (PA), Nylon
Insulation Height [z]	1.043 in
Insulation Height [z]	26.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	90 °
Positions Per Level	4
Screw Size	M3
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm²	2.5 mm²
Wire Strip Length	7 mm

ED1100 Series

Part	Material Flammability Rating	Wire Strip Length	Features	Termination Style	Plug Wire Entry	Screw Size	Color	Number of Positions	Type	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Levels	Pitch [x]	Pitch [x]	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Housing Material	Wire Gauge or Range - mm²	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛	Number of Positions
On Shore Technology Inc. ED1100/16	UL94 V-0	7 mm	Retention Latches (Wire Side)	Screw	90 °	M3	Green	16	Plug Female Sockets	Copper Tin Alloy	1.043 in	26.5 mm	1	5 mm	0.197 in	16	-30 ░C	105 ░C	300 V	Polyamide (PA) Nylon	2.5 mm²	22 AWG	10 AWG	Free Hanging (In-Line)	4.4 Lb-In	0.5 Nm
On Shore Technology Inc. ED1100/9	UL94 V-0	7 mm	Retention Latches (Wire Side)	Screw	90 °	M3	Green		Plug Female Sockets	Copper Tin Alloy	1.043 in	26.5 mm	1	5 mm	0.197 in	9	-30 ░C	105 ░C	300 V	Polyamide (PA) Nylon		22 AWG	10 AWG	Free Hanging (In-Line)	4.4 Lb-In	0.5 Nm	2.5 mm˛	9
On Shore Technology Inc. ED1100/5	UL94 V-0	7 mm	Retention Latches (Wire Side)	Screw	90 °	M3	Green		Plug Female Sockets	Copper Tin Alloy	1.043 in	26.5 mm	1	5 mm	0.197 in	5	-30 ░C	105 ░C	300 V	Polyamide (PA) Nylon	2.5 mm²	22 AWG	10 AWG	Free Hanging (In-Line)	4.4 Lb-In	0.5 Nm
On Shore Technology Inc. ED1100/6	UL94 V-0	7 mm	Retention Latches (Wire Side)	Screw	90 °	M3	Green		Plug Female Sockets	Copper Tin Alloy	1.043 in	26.5 mm	1	5 mm	0.197 in	6	-30 ░C	105 ░C	300 V	Polyamide (PA) Nylon	2.5 mm²	22 AWG	10 AWG	Free Hanging (In-Line)	4.4 Lb-In	0.5 Nm		6
On Shore Technology Inc. ED1100/12	UL94 V-0	7 mm	Retention Latches (Wire Side)	Screw	90 °	M3	Green		Plug Female Sockets	Copper Tin Alloy	1.043 in	26.5 mm	1	5 mm	0.197 in	12	-30 ░C	105 ░C	300 V	Polyamide (PA) Nylon		22 AWG	10 AWG	Free Hanging (In-Line)	4.4 Lb-In	0.5 Nm	2.5 mm˛	12
On Shore Technology Inc. ED1100/10	UL94 V-0	7 mm	Retention Latches (Wire Side)	Screw	90 °	M3	Green		Plug Female Sockets	Copper Tin Alloy	1.043 in	26.5 mm	1	5 mm	0.197 in	10	-30 ░C	105 ░C	300 V	Polyamide (PA) Nylon		22 AWG	10 AWG	Free Hanging (In-Line)	4.4 Lb-In	0.5 Nm	2.5 mm˛	10
On Shore Technology Inc. ED1100/3	UL94 V-0	7 mm	Retention Latches (Wire Side)	Screw	90 °	M3	Green		Plug Female Sockets	Copper Tin Alloy	1.043 in	26.5 mm	1	5 mm	0.197 in	3	-30 ░C	105 ░C	300 V	Polyamide (PA) Nylon	2.5 mm²	22 AWG	10 AWG	Free Hanging (In-Line)	4.4 Lb-In	0.5 Nm
On Shore Technology Inc. ED1100/4	UL94 V-0	7 mm	Retention Latches (Wire Side)	Screw	90 °	M3	Green		Plug Female Sockets	Copper Tin Alloy	1.043 in	26.5 mm	1	5 mm	0.197 in	4	-30 ░C	105 ░C	300 V	Polyamide (PA) Nylon	2.5 mm²	22 AWG	10 AWG	Free Hanging (In-Line)	4.4 Lb-In	0.5 Nm		4
On Shore Technology Inc. ED1100/2	UL94 V-0	7 mm	Retention Latches (Wire Side)	Screw	90 °	M3	Green		Plug Female Sockets	Copper Tin Alloy	1.043 in	26.5 mm	1	5 mm	0.197 in	2	-30 ░C	105 ░C	300 V	Polyamide (PA) Nylon	2.5 mm²	22 AWG	10 AWG	Free Hanging (In-Line)	4.4 Lb-In	0.5 Nm		2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.91
		50	$ 3.12
		100	$ 3.05
		1000	$ 2.25

Description

General part information

ED1100 Series

4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
