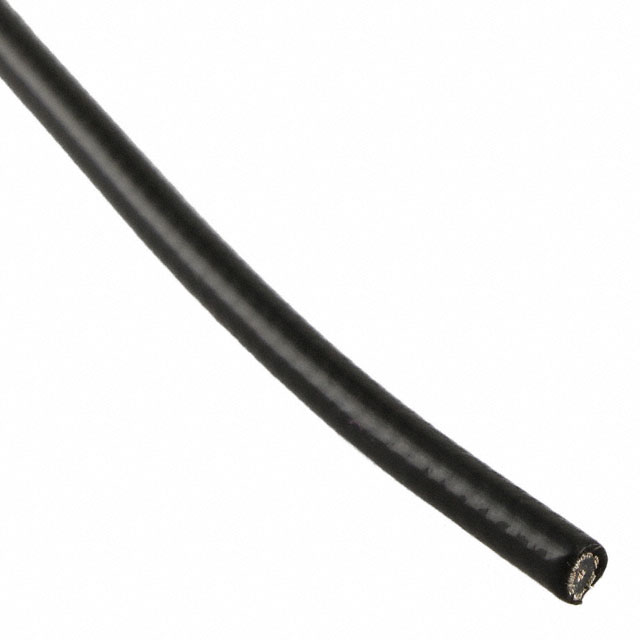

1000660054
ActiveMolex - Temp Flex
CABLE COAXIAL 26AWG 10'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1000660054
ActiveMolex - Temp Flex
CABLE COAXIAL 26AWG 10'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000660054 |
|---|---|
| Cable Type | Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | 34 AWG, 7 Strands |
| Dielectric Diameter [diameter] | 1.37 mm |
| Dielectric Diameter [diameter] | 0.054 in |
| Dielectric Material | Fluorinated Ethylene Propylene (FEP) |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.1 in |
| Jacket (Insulation) Diameter [diameter] | 2.54 mm |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Length [x] | 3.05 m, 30.48 m |
| Length [x] | 10 ft, 100 ft |
| Shield Coverage | 95 % |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Spool Size | 5000 ' |
| Spool Size | 1524 m |
| VoP, Velocity of Propagation | 70 |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 2.45 | |
| 3 | $ 2.28 | |||
| 5 | $ 2.19 | |||
| 7 | $ 2.13 | |||
| 10 | $ 2.09 | |||
| 25 | $ 1.96 | |||
| 50 | $ 1.93 | |||
| Spool | 1 | $ 24.65 | ||
| 1 | $ 233.90 | |||
| 3 | $ 22.76 | |||
| 3 | $ 216.39 | |||
| 5 | $ 208.88 | |||
| 5 | $ 22.01 | |||
| 7 | $ 21.50 | |||
| 7 | $ 203.88 | |||
| 10 | $ 198.88 | |||
| 10 | $ 20.87 | |||
| 25 | $ 19.62 | |||
| 25 | $ 186.37 | |||
| 50 | $ 18.61 | |||
| 50 | $ 176.36 | |||
| 100 | $ 17.73 | |||
Description
General part information
100066 Series
Coaxial Cable 26 AWG 10.0' (3.05m) 50 Ohms
