1000660053
ActiveMolex - Temp Flex

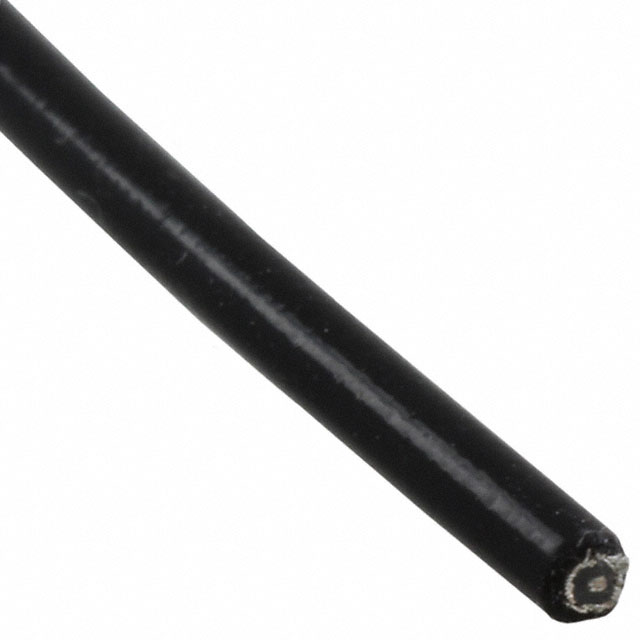

CABLE COAXIAL 30AWG 200'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1000660053
ActiveMolex - Temp Flex
CABLE COAXIAL 30AWG 200'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000660053 |
|---|---|
| Cable Type | Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 38 AWG |
| Dielectric Diameter [diameter] | 0.034 " |
| Dielectric Diameter [diameter] | 0.86 mm |
| Dielectric Material | Fluorinated Ethylene Propylene (FEP) |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 1.8 mm |
| Jacket (Insulation) Diameter [diameter] | 0.071 " |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Black |
| Length | 200 ', 25 ft |
| Length | 60.96 m, 7.62 m |
| Shield Coverage | 95 % |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| VoP, Velocity of Propagation | 70 |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 441.15 | |
| 1 | $ 14.33 | |||
| 1 | $ 65.09 | |||
| 2 | $ 13.65 | |||
| 2 | $ 419.46 | |||
| 3 | $ 407.18 | |||
| 3 | $ 60.22 | |||
| 3 | $ 13.26 | |||
| 5 | $ 58.13 | |||
| 5 | $ 12.79 | |||
| 5 | $ 392.13 | |||
| 7 | $ 56.74 | |||
| 7 | $ 382.46 | |||
| 7 | $ 12.49 | |||
| 10 | $ 55.35 | |||
| 10 | $ 372.42 | |||
| 10 | $ 12.18 | |||
| 25 | $ 11.40 | |||
| 25 | $ 51.87 | |||
| 25 | $ 347.57 | |||
| 50 | $ 49.08 | |||
| 50 | $ 10.84 | |||
| 100 | $ 10.30 | |||
| 100 | $ 46.99 | |||
Description
General part information
100066 Series
Coaxial Cable 30 AWG 200.0' (60.96m) 50 Ohms
Documents
Technical documentation and resources
