Molex - Temp Flex

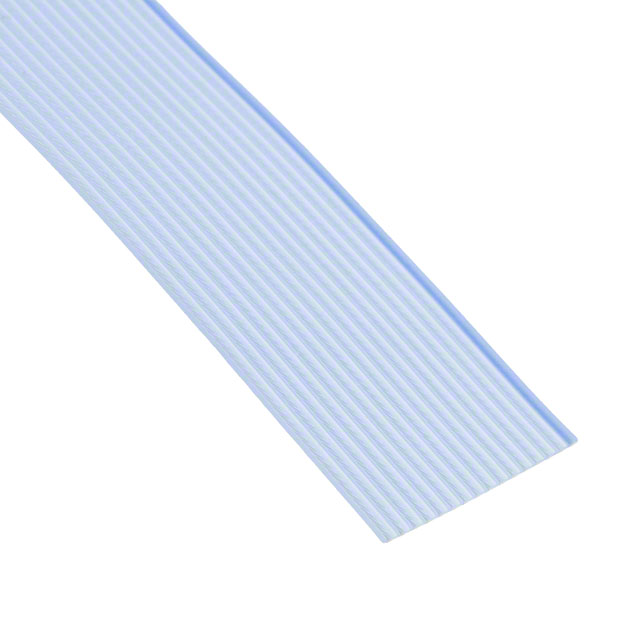

CBL RIBN 16COND 0.05 BLUE 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1000570033

Unknown

Molex - Temp Flex

CBL RIBN 16COND 0.05 BLUE 50'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1000570033

Cable Type	Flat Cable
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Blue
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Blue
Length	25 ft, 50 ft
Length	7.62 m, 15.24 m
Number of Conductors	16
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 20424
Ribbon Width [y]	20.32 mm
Ribbon Width [y]	0.8 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

100057 Series

Part	Wire Gauge	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Voltage	Length	Length	Number of Conductors	Pitch [x]	Pitch [x]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket Color	Ratings	Ribbon Width	Ribbon Width	Length	Conductor Strand	Ribbon Width	Ribbon Thickness	Ribbon Thickness	Operating Temperature	Spool Size	Spool Size	Ribbon Width [y]	Ribbon Width [y]	First Conductor Mark	Ribbon Width [x]	Ribbon Width [x]	Ribbon Thickness	Ribbon Width [custom]	Ribbon Width [custom]
Molex - Temp Flex 1000570350	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Bare	300 V	152.4 m	6000 in	37	0.05 in	1.27 mm	Unshielded	-65 ░C	200 °C	Flat Cable	Red
Molex - Temp Flex 1000570345	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V			20	0.05 in	1.27 mm	Unshielded	-55 °C	200 °C	Flat Cable	Red	UL Style 20424	1 in	25.4 mm
Molex - Temp Flex 1000570115	26 AWG	Fluorinated Ethylene-Propylene (FEP)			Copper Silver Coated	300 V			50	0.05 in	1.27 mm	Unshielded			Flat Cable	Green		63.5 mm		Enter Number of Feet in Order Quantity	7 Strands 34 AWG	2.5 "	0.81 mm	0.032 in	200 °C	30.48 m	100 ft
Molex - Temp Flex 1000570033	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V	7.62 m 15.24 m	25 ft 50 ft	16	0.05 in	1.27 mm	Unshielded	-55 °C	200 °C	Flat Cable	Blue	UL Style 20424											20.32 mm	0.8 in	Blue
Molex - Temp Flex 1000570150	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V	152.4 m	6000 in	14	0.05 in	1.27 mm	Unshielded			Flat Cable	Red							0.029 in		200 °C						0.7 in	17.78 mm	0.74 mm
Molex - Temp Flex 1000570031	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V	7.62 m	25 ft	10	0.05 in	1.27 mm	Unshielded	-55 °C	200 °C	Flat Cable	Blue	UL Style 20424													Blue				0.5 "	12.7 mm
Molex - Temp Flex 1000570360	26 AWG	Fluorinated Ethylene-Propylene (FEP)			Copper Bare	300 V	152.4 m	6000 in	60	0.05 in	1.27 mm	Unshielded	-65 ░C	200 °C	Flat Cable	Green					7 Strands 34 AWG
Molex - Temp Flex 1000570204	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V	152.4 m	6000 in	50	0.05 in	1.27 mm	Unshielded			Flat Cable	Red		63.5 mm				2.5 "	0.029 in		200 °C								0.74 mm
Molex - Temp Flex 1000570308	32 AWG	Fluorinated Ethylene-Propylene (FEP)			Copper Silver Coated	300 V	152.4 m	6000 in	40	0.025 in	0.64 mm	Unshielded	-65 ░C	200 °C	Flat Cable	Red
Molex - Temp Flex 1000570354	26 AWG	Fluorinated Ethylene-Propylene (FEP)			Copper Bare	300 V	152.4 m	6000 in	14	0.05 in	1.27 mm	Unshielded	-65 ░C	200 °C	Flat Cable	Green					7 Strands 34 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

100057 Series

Flat Ribbon Cable Blue 16 Conductors 0.050" (1.27mm) Flat Cable 50.0' (15.24m)
