1000570115

Active

Molex - Temp Flex

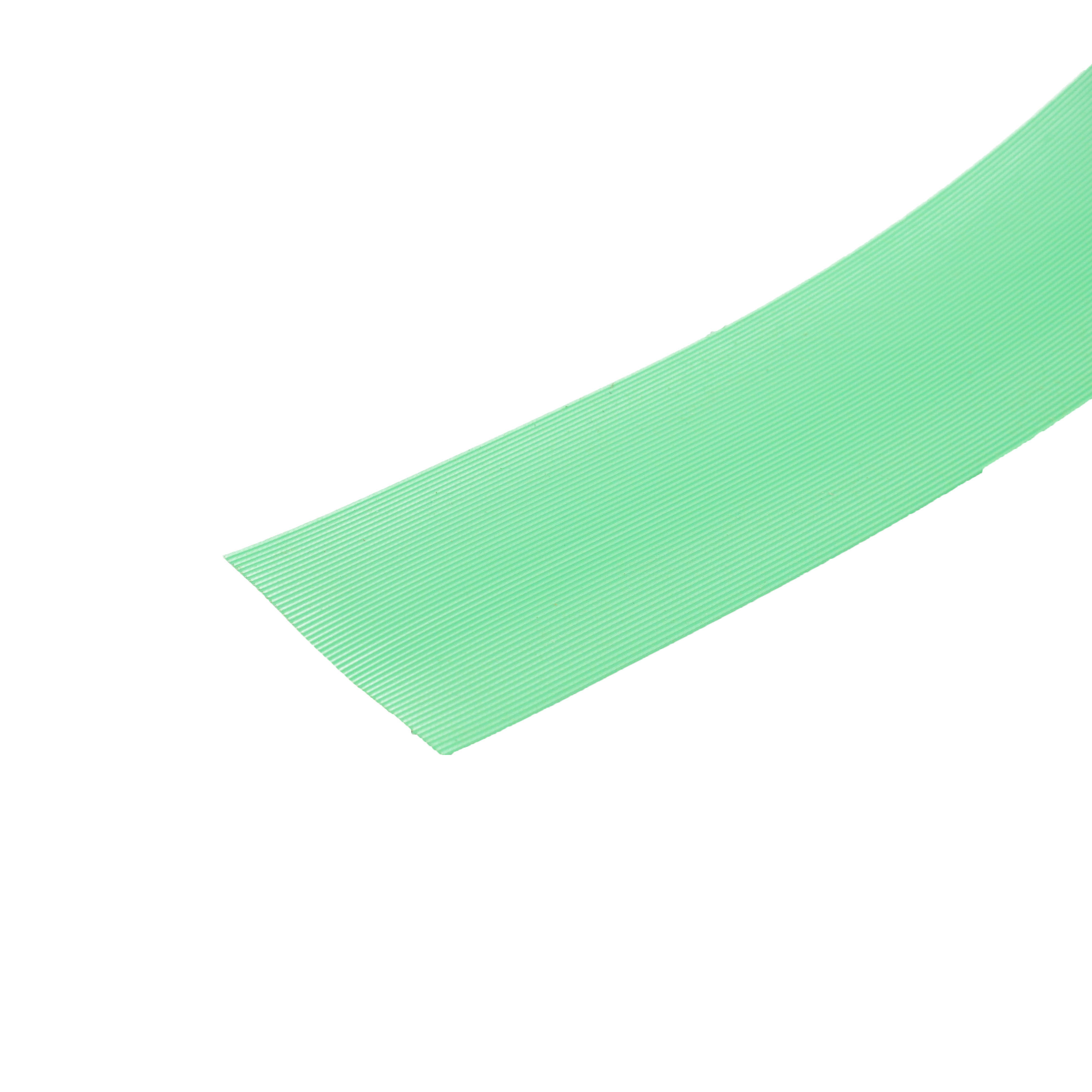

CBL RIBN 50COND 0.05 GREEN FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Temp-Flex FEP Flat Ribbon Cable Brochure

1000570115

Active

Molex - Temp Flex

CBL RIBN 50COND 0.05 GREEN FEET

Deep-Dive with AI

DocumentsDatasheet Temp-Flex FEP Flat Ribbon Cable Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1000570115

Cable Type	Flat Cable
Conductor Material	Copper, Silver Coated
Conductor Strand	34 AWG, 7 Strands
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Green
Length	Enter Number of Feet in Order Quantity
Number of Conductors	50
Operating Temperature	200 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ribbon Thickness	0.81 mm
Ribbon Thickness	0.032 in
Ribbon Width	63.5 mm
Ribbon Width	2.5 "
Shielding	Unshielded
Spool Size	30.48 m
Spool Size	100 ft
Voltage	300 V
Wire Gauge	26 AWG

100057 Series

Part	Wire Gauge	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Voltage	Length	Length	Number of Conductors	Pitch [x]	Pitch [x]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket Color	Ratings	Ribbon Width	Ribbon Width	Length	Conductor Strand	Ribbon Width	Ribbon Thickness	Ribbon Thickness	Operating Temperature	Spool Size	Spool Size	Ribbon Width [y]	Ribbon Width [y]	First Conductor Mark	Ribbon Width [x]	Ribbon Width [x]	Ribbon Thickness	Ribbon Width [custom]	Ribbon Width [custom]
Molex - Temp Flex 1000570350	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Bare	300 V	152.4 m	6000 in	37	0.05 in	1.27 mm	Unshielded	-65 ░C	200 °C	Flat Cable	Red
Molex - Temp Flex 1000570345	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V			20	0.05 in	1.27 mm	Unshielded	-55 °C	200 °C	Flat Cable	Red	UL Style 20424	1 in	25.4 mm
Molex - Temp Flex 1000570115	26 AWG	Fluorinated Ethylene-Propylene (FEP)			Copper Silver Coated	300 V			50	0.05 in	1.27 mm	Unshielded			Flat Cable	Green		63.5 mm		Enter Number of Feet in Order Quantity	7 Strands 34 AWG	2.5 "	0.81 mm	0.032 in	200 °C	30.48 m	100 ft
Molex - Temp Flex 1000570033	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V	7.62 m 15.24 m	25 ft 50 ft	16	0.05 in	1.27 mm	Unshielded	-55 °C	200 °C	Flat Cable	Blue	UL Style 20424											20.32 mm	0.8 in	Blue
Molex - Temp Flex 1000570150	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V	152.4 m	6000 in	14	0.05 in	1.27 mm	Unshielded			Flat Cable	Red							0.029 in		200 °C						0.7 in	17.78 mm	0.74 mm
Molex - Temp Flex 1000570031	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V	7.62 m	25 ft	10	0.05 in	1.27 mm	Unshielded	-55 °C	200 °C	Flat Cable	Blue	UL Style 20424													Blue				0.5 "	12.7 mm
Molex - Temp Flex 1000570360	26 AWG	Fluorinated Ethylene-Propylene (FEP)			Copper Bare	300 V	152.4 m	6000 in	60	0.05 in	1.27 mm	Unshielded	-65 ░C	200 °C	Flat Cable	Green					7 Strands 34 AWG
Molex - Temp Flex 1000570204	28 AWG	Fluorinated Ethylene-Propylene (FEP)	7	36 AWG	Copper Silver Coated	300 V	152.4 m	6000 in	50	0.05 in	1.27 mm	Unshielded			Flat Cable	Red		63.5 mm				2.5 "	0.029 in		200 °C								0.74 mm
Molex - Temp Flex 1000570308	32 AWG	Fluorinated Ethylene-Propylene (FEP)			Copper Silver Coated	300 V	152.4 m	6000 in	40	0.025 in	0.64 mm	Unshielded	-65 ░C	200 °C	Flat Cable	Red
Molex - Temp Flex 1000570354	26 AWG	Fluorinated Ethylene-Propylene (FEP)			Copper Bare	300 V	152.4 m	6000 in	14	0.05 in	1.27 mm	Unshielded	-65 ░C	200 °C	Flat Cable	Green					7 Strands 34 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 26.86
		2	$ 24.33
		3	$ 22.96
		5	$ 21.34
		7	$ 20.34
		10	$ 19.33
		25	$ 16.96
		50	$ 15.38
		100	$ 13.95

Description

General part information

100057 Series

Flat Ribbon Cable Green 50 Conductors 0.050" (1.27mm) Flat Cable Enter Number of Feet in Order Quantity
