PT02E-12-3S

Active

Amphenol Industrial Operations

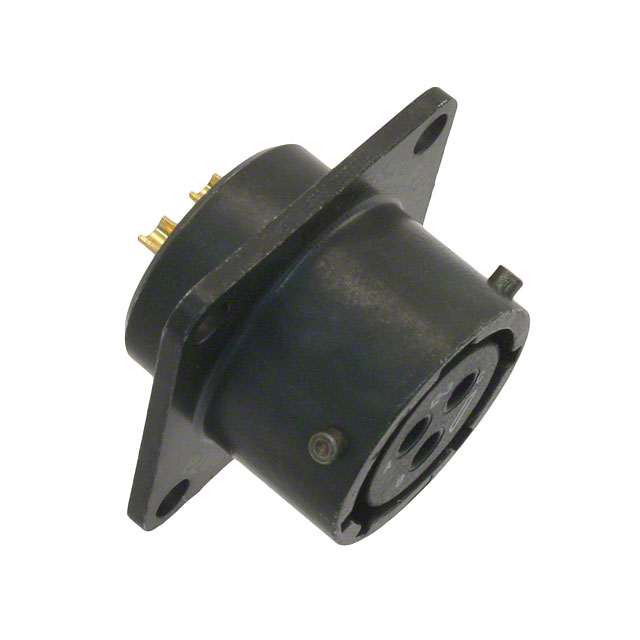

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT02E-12-3S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT02E-12-3S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	12-3
Shielding	Unshielded

PT02E Series

Part	Number of Positions	Ingress Protection	Mounting Feature	Contact Finish - Mating	Connector Type	Insert Material	Qualification	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Fastening Type	Color	Primary Material	Shell Size - Insert	Backshell Material, Plating	Shielding	Orientation	Shell Material	Applications	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Industrial Operations PT02E12-8S-025	8	Environment Resistant	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Black Zinc Cobalt	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Black	Metal	12-8	Aluminum Black Zinc Cobalt	Unshielded	N	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit
Amphenol Industrial Operations PT02E-14-5P		Environment Sealed	Flange	Gold	Male Pins Receptacle	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal	14-5	Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E12-3P(025)		Environment Sealed	Flange	Gold	Male Pins Receptacle	Neoprene	MIL-DTL-26482 Series I	Black Zinc Cobalt	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Black	Metal	12-3	Aluminum Black Zinc Cobalt	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E24-61PW	61	Environment Resistant	Flange	Gold	Male Pins Receptacle	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal		Aluminum Olive Drab Cadmium	Unshielded	W	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit	61	24
Amphenol Industrial Operations PT02E-12-10P(025)	10	Environment Sealed	Flange	Gold	Male Pins Receptacle	Neoprene	MIL-DTL-26482 Series I	Black Zinc Cobalt	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Black	Metal		Aluminum Black Zinc Cobalt	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E-14-19S	19	Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal		Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military			19	14
Amphenol Industrial Operations PT02E-10-5S		Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal	10-5	Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E-12-3S		Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal	12-3	Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E-10-6S	6	Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal	10-6	Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E-14-18S	18	Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal		Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	18	14
