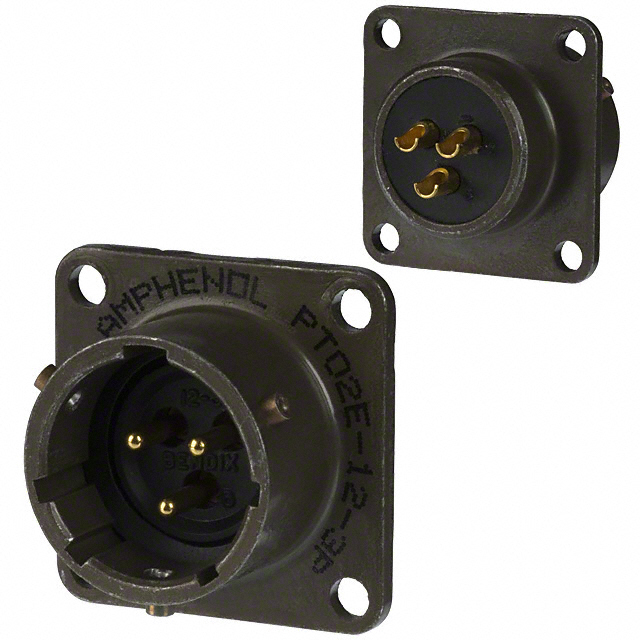

PT02E12-3P(025)

Active

Amphenol Industrial Operations

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

PT02E12-3P(025)

Active

Amphenol Industrial Operations

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT02E12-3P(025)

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Black Zinc Cobalt, Aluminum
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Black Zinc Cobalt
Shell Material	Aluminum
Shell Size - Insert	12-3
Shielding	Unshielded

PT02E Series

Part	Number of Positions	Ingress Protection	Mounting Feature	Contact Finish - Mating	Connector Type	Insert Material	Qualification	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Fastening Type	Color	Primary Material	Shell Size - Insert	Backshell Material, Plating	Shielding	Orientation	Shell Material	Applications	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Industrial Operations PT02E12-8S-025	8	Environment Resistant	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Black Zinc Cobalt	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Black	Metal	12-8	Aluminum Black Zinc Cobalt	Unshielded	N	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit
Amphenol Industrial Operations PT02E-14-5P		Environment Sealed	Flange	Gold	Male Pins Receptacle	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal	14-5	Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E12-3P(025)		Environment Sealed	Flange	Gold	Male Pins Receptacle	Neoprene	MIL-DTL-26482 Series I	Black Zinc Cobalt	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Black	Metal	12-3	Aluminum Black Zinc Cobalt	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E24-61PW	61	Environment Resistant	Flange	Gold	Male Pins Receptacle	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal		Aluminum Olive Drab Cadmium	Unshielded	W	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit	61	24
Amphenol Industrial Operations PT02E-12-10P(025)	10	Environment Sealed	Flange	Gold	Male Pins Receptacle	Neoprene	MIL-DTL-26482 Series I	Black Zinc Cobalt	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Black	Metal		Aluminum Black Zinc Cobalt	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E-14-19S	19	Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal		Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military			19	14
Amphenol Industrial Operations PT02E-10-5S		Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal	10-5	Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E-12-3S		Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal	12-3	Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E-10-6S	6	Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal	10-6	Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT02E-14-18S	18	Environment Sealed	Flange	Gold	Receptacle Female Sockets	Neoprene	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Copper Alloy	Bayonet Lock	Olive Drab	Metal		Aluminum Olive Drab Cadmium	Unshielded	N	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	18	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.20
		10	$ 13.47
		100	$ 11.74
		1000	$ 9.19

Description

General part information

PT02E Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup
