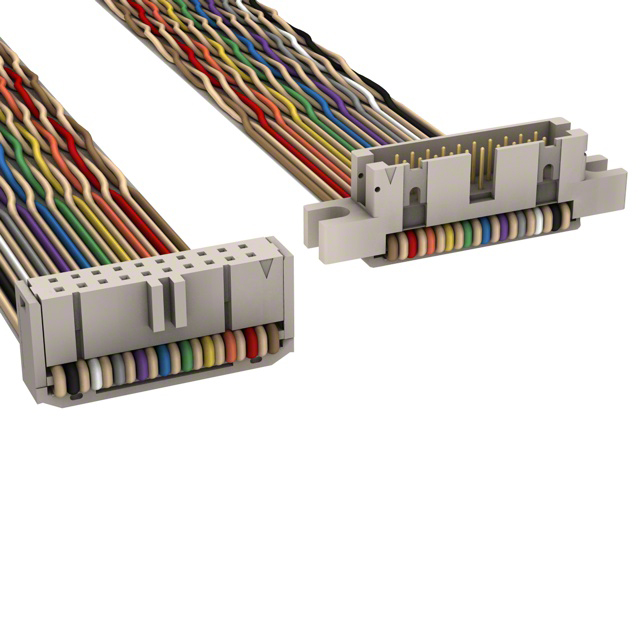

M3UYK-2040K

Active

3M (TC)

IDC CABLE - MKS20K/MC20F/MPD20K

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Ribbon Cable Assembly Length Guide +1

M3UYK-2040K

Active

3M (TC)

IDC CABLE - MKS20K/MC20F/MPD20K

Deep-Dive with AI

Documents1700 Series Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3UYK-2040K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Flange, Strain Relief (Socket), Polarizing Key, Strain Relief (Plug)
Length [x]	1.02 m
Length [x]	3.34 ft
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3UYK Series

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Length	Length	Number of Rows	Number of Positions	Shielding	Cable Termination	Connector Type	Color	Contact Finish	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Number of Positions
3M (TC) M3UYK-3420K	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm	508 mm	1.67 ft	2	34	Unshielded	IDC	Socket to Plug	Multiple Twisted Pair (Flat)	Gold	0.1 in	2.54 mm
3M (TC) M3UYK-3436J	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm			2	34	Unshielded	IDC	Socket to Plug		Gold	0.1 in	2.54 mm	3 ft	914.4 mm
3M (TC) M3UYK-1060K	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm	1.52 m	5 '	2	10	Unshielded	IDC	Socket to Plug	Multiple Twisted Pair (Flat)	Gold	0.1 in	2.54 mm
3M (TC) M3UYK-2018J	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm			2	20	Unshielded	IDC	Socket to Plug		Gold	0.1 in	2.54 mm	1.5 ft	457.2 mm
3M (TC) M3UYK-4018R	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm			2	40	Unshielded	IDC	Socket to Plug	Multiple Ribbon	Gold	0.1 in	2.54 mm	1.5 ft	457.2 mm
3M (TC) M3UYK-5018R	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm			2	50	Unshielded	IDC	Socket to Plug	Multiple Ribbon	Gold	0.1 in	2.54 mm	1.5 ft	457.2 mm
3M (TC) M3UYK-1040K	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm			2	10	Unshielded	IDC	Socket to Plug	Multiple Twisted Pair (Flat)	Gold	0.1 in	2.54 mm	3.34 ft	1.02 m
3M (TC) M3UYK-1660K	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm	1.52 m	5 '	2		Unshielded	IDC	Socket to Plug	Multiple Twisted Pair (Flat)	Gold	0.1 in	2.54 mm			16
3M (TC) M3UYK-1036R	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm			2	10	Unshielded	IDC	Socket to Plug	Multiple Ribbon	Gold	0.1 in	2.54 mm	3 ft	914.4 mm
3M (TC) M3UYK-2040K	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	0.76 Ám	30 Áin	0.05 "	1.27 mm			2	20	Unshielded	IDC	Socket to Plug	Multiple Twisted Pair (Flat)	Gold	0.1 in	2.54 mm	3.34 ft	1.02 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.17
		10	$ 21.73
		25	$ 19.69
		50	$ 18.31
		100	$ 17.05
		250	$ 15.58
		500	$ 14.58

Description

General part information

M3UYK Series

20 Position Cable Assembly Rectangular Socket to Plug 3.34' (1.02m)

Documents

Technical documentation and resources

1700 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
