M3UYK-2018J
Active3M (TC)
IDC CABLE - MKS20K/MC20G/MPD20K
Deep-Dive with AI
Search across all available documentation for this part.
M3UYK-2018J
Active3M (TC)
IDC CABLE - MKS20K/MC20G/MPD20K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3UYK-2018J |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Flange, Strain Relief (Socket), Polarizing Key, Strain Relief (Plug) |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
M3UYK Series
| Part | Features | Contact Finish Thickness | Contact Finish Thickness | Pitch - Cable | Pitch - Cable | Length | Length | Number of Rows | Number of Positions | Shielding | Cable Termination | Connector Type | Color | Contact Finish | Pitch - Connector | Pitch - Connector | Length [x] | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 508 mm | 1.67 ft | 2 | 34 | Unshielded | IDC | Socket to Plug | Multiple Twisted Pair (Flat) | Gold | 0.1 in | 2.54 mm | |||
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 2 | 34 | Unshielded | IDC | Socket to Plug | Gold | 0.1 in | 2.54 mm | 3 ft | 914.4 mm | ||||
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 1.52 m | 5 ' | 2 | 10 | Unshielded | IDC | Socket to Plug | Multiple Twisted Pair (Flat) | Gold | 0.1 in | 2.54 mm | |||
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 2 | 20 | Unshielded | IDC | Socket to Plug | Gold | 0.1 in | 2.54 mm | 1.5 ft | 457.2 mm | ||||
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 2 | 40 | Unshielded | IDC | Socket to Plug | Multiple Ribbon | Gold | 0.1 in | 2.54 mm | 1.5 ft | 457.2 mm | |||
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 2 | 50 | Unshielded | IDC | Socket to Plug | Multiple Ribbon | Gold | 0.1 in | 2.54 mm | 1.5 ft | 457.2 mm | |||
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 2 | 10 | Unshielded | IDC | Socket to Plug | Multiple Twisted Pair (Flat) | Gold | 0.1 in | 2.54 mm | 3.34 ft | 1.02 m | |||
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 1.52 m | 5 ' | 2 | Unshielded | IDC | Socket to Plug | Multiple Twisted Pair (Flat) | Gold | 0.1 in | 2.54 mm | 16 | |||
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 2 | 10 | Unshielded | IDC | Socket to Plug | Multiple Ribbon | Gold | 0.1 in | 2.54 mm | 3 ft | 914.4 mm | |||
3M (TC) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | 2 | 20 | Unshielded | IDC | Socket to Plug | Multiple Twisted Pair (Flat) | Gold | 0.1 in | 2.54 mm | 3.34 ft | 1.02 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.24 | |
| 10 | $ 17.13 | |||
| 25 | $ 15.51 | |||
| 50 | $ 14.41 | |||
| 100 | $ 13.41 | |||
| 250 | $ 12.24 | |||
| 500 | $ 11.45 | |||
Description
General part information
M3UYK Series

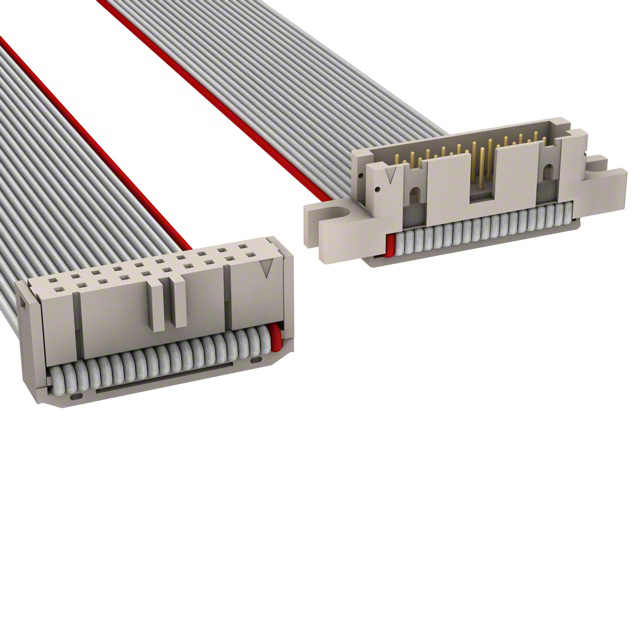

20 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
