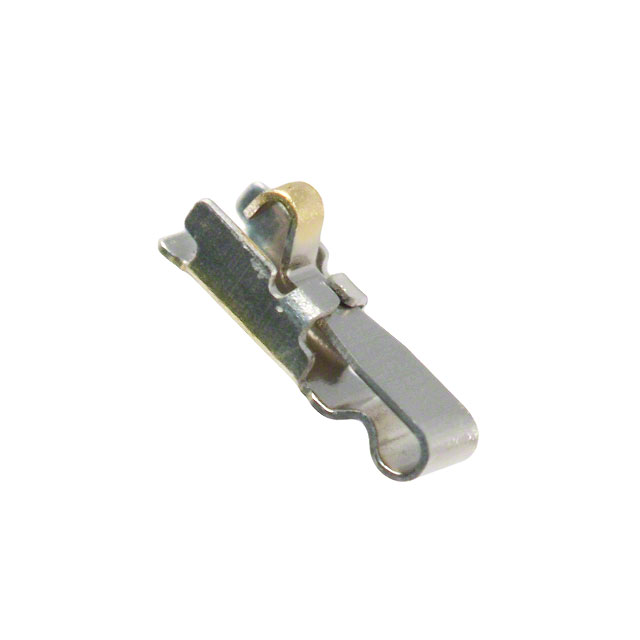

120220-0210
ActiveITT Cannon, LLC
RFI SHLD FINGER BECU NICK SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
120220-0210
ActiveITT Cannon, LLC
RFI SHLD FINGER BECU NICK SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 120220-0210 |
|---|---|
| Attachment Method | Solder |
| Height [z] | 0.051 in |
| Height [z] | 1.3 mm |
| Length [x] | 3.48 mm |
| Length [x] | 0.137 " |
| Material | Beryllium Copper |
| Plating | Nickel |
| Plating - Thickness [custom] | 118.11 µin |
| Plating - Thickness [custom] | 3 µm |
| Type | Shield Finger, Pre-Loaded |
| Width [x] | 0.9 mm |
| Width [x] | 0.035 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.37 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.20 | |||
| Tape & Reel (TR) | 9500 | $ 0.18 | ||
| 19000 | $ 0.17 | |||
| 28500 | $ 0.17 | |||
Description
General part information
12022 Series
RFI SHLD FINGER BECU NICK SOLDER
