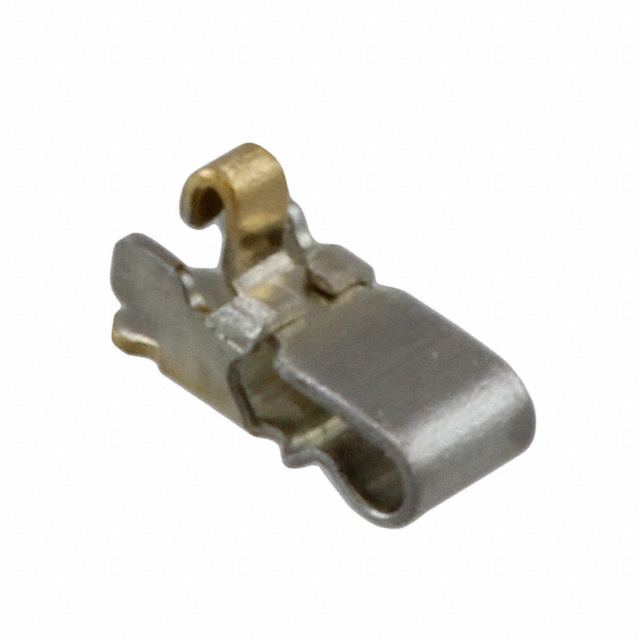

120220-0310

Active

ITT Cannon, LLC

RFI SHD FINGER TITAN CU NICK SLD

Search across all available documentation for this part.

Active

ITT Cannon, LLC

RFI SHD FINGER TITAN CU NICK SLD

Technical Specifications

Parameters and characteristics for this part

Part	Plating	Material	Height [z]	Height [z]	Length [x]	Length [x]	Attachment Method	Type	Width [x]	Width [x]	Plating - Thickness [custom]	Plating - Thickness [custom]	Length	Length	Width	Width
ITT Cannon, LLC 120220-0210	Nickel	Beryllium Copper	0.051 in	1.3 mm	3.48 mm	0.137 "	Solder	Shield Finger Pre-Loaded	0.9 mm	0.035 in	118.11 µin	3 µm
ITT Cannon, LLC 120220-0204	Gold	Beryllium Copper	0.138 in	3.5 mm			Solder	Shield Finger Pre-Loaded	1.1 mm	0.043 in	118.11 µin	3 µm
ITT Cannon, LLC 120220-0310	Nickel	Titanium Copper	0.051 in	1.3 mm			Solder	Shield Finger Pre-Loaded			118.11 µin	3 µm	0.093 in	2.37 mm	0.038 in	0.96 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RFI SHD FINGER TITAN CU NICK SLD

Technical documentation and resources
