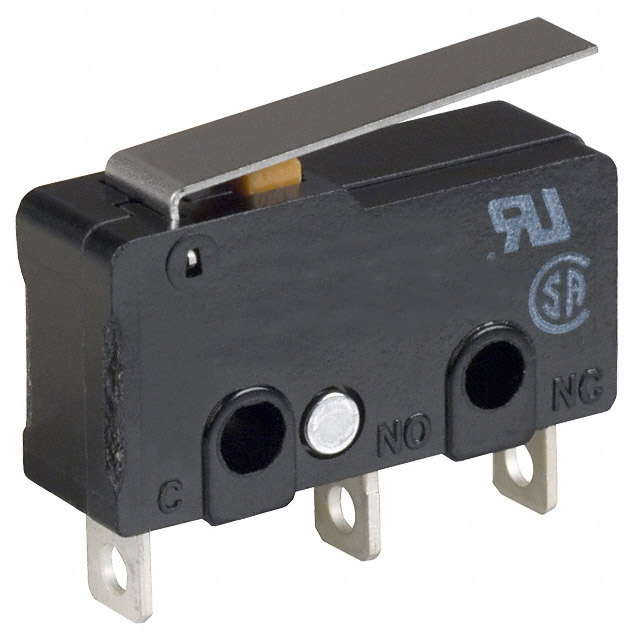

SS-10GL

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 250V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-10GL

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	10 A
Differential Travel	1 mm
Differential Travel	0.04 in
Electrical Life	50000 Cycles
Ingress Protection	IP40
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	50 gf
Operating Position	8.8 mm
Operating Position	0.345 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overtravel	0.039 in
Overtravel	1 mm
Release Force	6.118 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	250 V

SS-10 Series

Part	Mechanical Life	Electrical Life	Switch Function	Actuator Type	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Current Rating (Amps)	Mounting Type	Operating Force	Voltage Rating - AC	Differential Travel	Differential Travel	Release Force	Ingress Protection	Termination Style	Operating Position	Operating Position	Operating Position [custom]	Operating Position [custom]	Pretravel	Pretravel
Omron Electronics Inc-EMC Div SS-10GL13-3D	10000000 Cycles	50000 Cycles	Off-Mom	Lever Simulated Roller	0.04 in	1 mm	-25 °C	85 °C	SPST-NO	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin
Omron Electronics Inc-EMC Div SS-10GL	10000000 Cycles	50000 Cycles	On-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPDT	10 A	Chassis Mount	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	Solder Lug	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-10GL-3D	10000000 Cycles	50000 Cycles	Off-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPST-NO	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-10GL13-3	10000000 Cycles	50000 Cycles	Off-Mom	Lever Simulated Roller	0.04 in	1 mm	-25 °C	85 °C	SPST-NO	10 A	Chassis Mount	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	Solder Lug
Omron Electronics Inc-EMC Div SS-10GL2D	10000000 Cycles	50000 Cycles	On-Mom	Lever Roller	0.04 in	1 mm	-25 °C	85 °C	SPDT	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin			0.571 in	14.5 mm
Omron Electronics Inc-EMC Div SS-10-3T	10000000 Cycles	50000 Cycles	Off-Mom	Round (Pin Plunger)	0.015 "	0.4 mm	-25 °C	85 °C	SPST-NO	10 A	Chassis Mount	150 gf	250 V	0.13 mm	0.005 in	25 gf	IP40	Quick Connect - 0.110" (2.8mm)	8.4 mm	0.33 in			0.024 in	0.6 mm
Omron Electronics Inc-EMC Div SS-10GLT	10000000 Cycles	50000 Cycles	On-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPDT	10 A	Chassis Mount	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	Quick Connect - 0.110" (2.8mm)	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-10-2D	10000000 Cycles	50000 Cycles	On-Mom	Round (Pin Plunger)	0.015 "	0.4 mm	-25 °C	85 °C	SPST-NC	10 A	Through Hole	150 gf	250 V	0.13 mm	0.005 in	25 gf	IP40	PC Pin	8.4 mm	0.33 in			0.024 in	0.6 mm
Omron Electronics Inc-EMC Div SS-10GLD	10000000 Cycles	50000 Cycles	On-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPDT	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-10GLD-T	10000000 Cycles	50000 Cycles	On-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPDT	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin	8.8 mm	0.345 in
