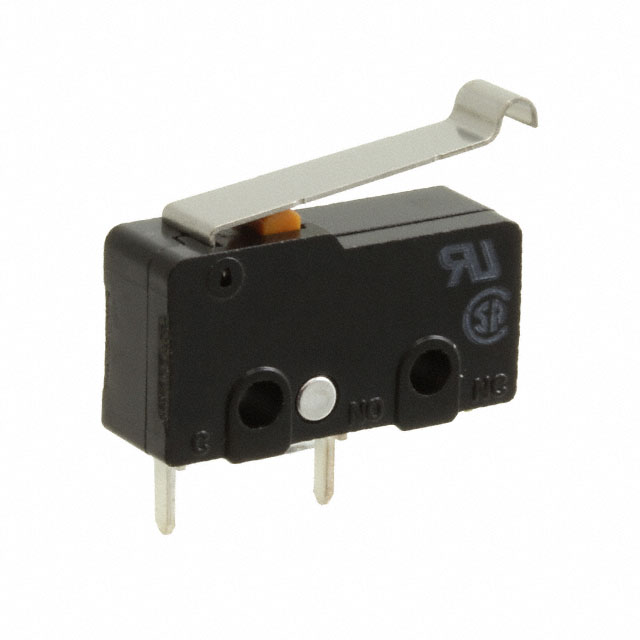

SS-10GL13-3D

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 10A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

SS-10GL13-3D

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 10A 250V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-10GL13-3D

Actuator Type	Simulated Roller, Lever
Circuit	SPST-NO
Current Rating (Amps)	10 A
Differential Travel	1 mm
Differential Travel	0.04 in
Electrical Life	50000 Cycles
Ingress Protection	IP40
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole
Operating Force	50 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overtravel	0.04 in
Overtravel	1 mm
Release Force	6.118 gf
Switch Function	Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	250 V

SS-10 Series

Part	Mechanical Life	Electrical Life	Switch Function	Actuator Type	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Current Rating (Amps)	Mounting Type	Operating Force	Voltage Rating - AC	Differential Travel	Differential Travel	Release Force	Ingress Protection	Termination Style	Operating Position	Operating Position	Operating Position [custom]	Operating Position [custom]	Pretravel	Pretravel
Omron Electronics Inc-EMC Div SS-10GL13-3D	10000000 Cycles	50000 Cycles	Off-Mom	Lever Simulated Roller	0.04 in	1 mm	-25 °C	85 °C	SPST-NO	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin
Omron Electronics Inc-EMC Div SS-10GL	10000000 Cycles	50000 Cycles	On-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPDT	10 A	Chassis Mount	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	Solder Lug	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-10GL-3D	10000000 Cycles	50000 Cycles	Off-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPST-NO	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-10GL13-3	10000000 Cycles	50000 Cycles	Off-Mom	Lever Simulated Roller	0.04 in	1 mm	-25 °C	85 °C	SPST-NO	10 A	Chassis Mount	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	Solder Lug
Omron Electronics Inc-EMC Div SS-10GL2D	10000000 Cycles	50000 Cycles	On-Mom	Lever Roller	0.04 in	1 mm	-25 °C	85 °C	SPDT	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin			0.571 in	14.5 mm
Omron Electronics Inc-EMC Div SS-10-3T	10000000 Cycles	50000 Cycles	Off-Mom	Round (Pin Plunger)	0.015 "	0.4 mm	-25 °C	85 °C	SPST-NO	10 A	Chassis Mount	150 gf	250 V	0.13 mm	0.005 in	25 gf	IP40	Quick Connect - 0.110" (2.8mm)	8.4 mm	0.33 in			0.024 in	0.6 mm
Omron Electronics Inc-EMC Div SS-10GLT	10000000 Cycles	50000 Cycles	On-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPDT	10 A	Chassis Mount	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	Quick Connect - 0.110" (2.8mm)	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-10-2D	10000000 Cycles	50000 Cycles	On-Mom	Round (Pin Plunger)	0.015 "	0.4 mm	-25 °C	85 °C	SPST-NC	10 A	Through Hole	150 gf	250 V	0.13 mm	0.005 in	25 gf	IP40	PC Pin	8.4 mm	0.33 in			0.024 in	0.6 mm
Omron Electronics Inc-EMC Div SS-10GLD	10000000 Cycles	50000 Cycles	On-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPDT	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin	8.8 mm	0.345 in
Omron Electronics Inc-EMC Div SS-10GLD-T	10000000 Cycles	50000 Cycles	On-Mom	Lever Straight	0.039 in	1 mm	-25 °C	85 °C	SPDT	10 A	Through Hole	50 gf	250 V	1 mm	0.04 in	6.118 gf	IP40	PC Pin	8.8 mm	0.345 in
