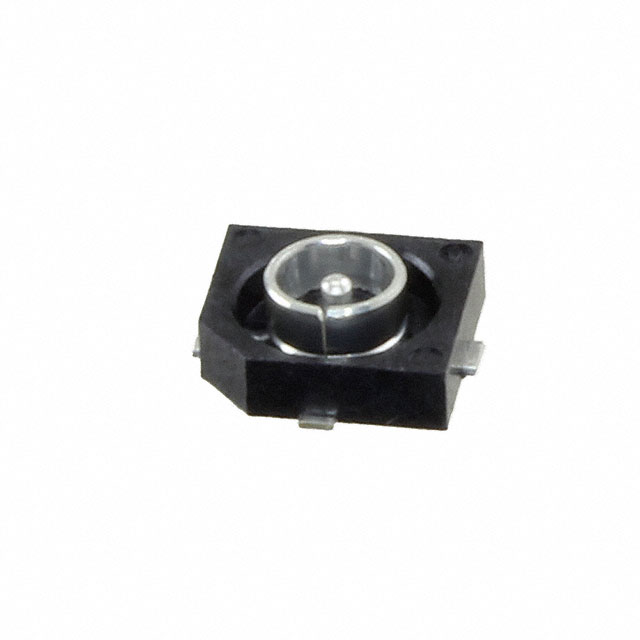

H.FL/S-R-SMT(10)
ActiveHirose Electric USA, Inc.
CONN H.FL RCPT STR 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
H.FL/S-R-SMT(10)
ActiveHirose Electric USA, Inc.
CONN H.FL RCPT STR 50 OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H.FL/S-R-SMT(10) |
|---|---|
| Body Finish | Silver |
| Body Material | Phosphor Bronze |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | H.FL |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Black |
| Impedance | 50 Ohms |
| Mating Cycles | 50 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.38 | |
| 10 | $ 3.07 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.84 | |||
| 100 | $ 2.71 | |||
| 250 | $ 2.37 | |||
| 500 | $ 2.30 | |||
| 1000 | $ 1.96 | |||
| Digi-Reel® | 1 | $ 3.38 | ||
| 10 | $ 3.07 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.84 | |||
| 100 | $ 2.71 | |||
| 250 | $ 2.37 | |||
| 500 | $ 2.30 | |||
| 1000 | $ 1.96 | |||
| Tape & Reel (TR) | 2500 | $ 1.56 | ||
Description
General part information
H.FL Series
H.FL Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder
