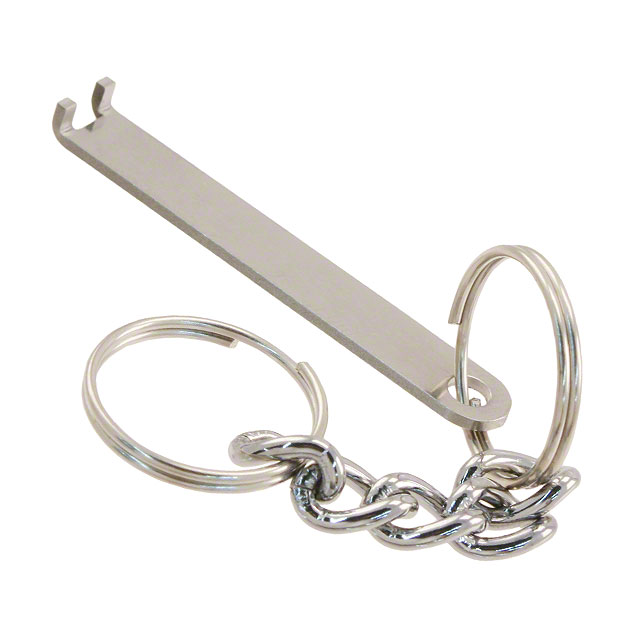

H.FL-LP-N

Active

Hirose Electric USA, Inc.

TOOL REMOVAL FL SERIES

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

TOOL REMOVAL FL SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	H.FL-LP-N

For Use With/Related Products	Coaxial, RF Connectors
Tool Type	Extraction Tool

Part	Accessory Type	For Use With/Related Products	Tool Type	Mating Cycles	Contact Termination	Mounting Type	Housing Color	Connector Style	Body Material	Center Contact Plating	Frequency - Max [Max]	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Impedance	Body Finish	Center Contact Material	Number of Ports	Voltage Rating	Dielectric Material	2nd Connector Mounting Type	Features	Overall Impedance	1st Contact Gender	Cable Type [diameter]	2nd Contact Gender	1st Connector Mounting Type	Style	2nd Connector	Length	Length	Length	Color	1st Connector	Type
Hirose Electric USA, Inc. H.FL-088/CR-AD2(64)	Crimper
Hirose Electric USA, Inc. H.FL-088/CR-AD2(62)	Crimper
Hirose Electric USA, Inc. H.FL-LP-N		Coaxial RF Connectors	Extraction Tool
Hirose Electric USA, Inc. H.FL/S-R-SMT(10)				50	Solder	Surface Mount	Black	H.FL	Phosphor Bronze	Silver	2 GHz	Snap-On	Male Pin Receptacle	90 °C	-40 °C	Solder	50 Ohms	Silver	Brass	1	300 VDC	Liquid Crystal Polymer (LCP)
Hirose Electric USA, Inc. H.FL/S-2LPA-088H1T-A-1000											2 GHz			90 °C	-40 °C								Free Hanging (In-Line)	Shielded	50 Ohms	Female	1.37 mm	Female	Free Hanging (In-Line)	H.FL to H.FL	H.FL Plug Right Angle	1 m	3.3 ft	39.4 in	Black	H.FL Plug Right Angle
Hirose Electric USA, Inc. H.FL/S-LP-088-A(01)
Hirose Electric USA, Inc. H.FL-088/CR-AD2(65)	Crimper
Hirose Electric USA, Inc. H.FL75-CONTACT																	75 Ohms																				H.FL
Hirose Electric USA, Inc. H.FL-088/CR-AD2
Hirose Electric USA, Inc. H.FL-088/CR-AD2(66)	Crimper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Extraction Tool For Coaxial, RF Connectors

Technical documentation and resources

No documents available
