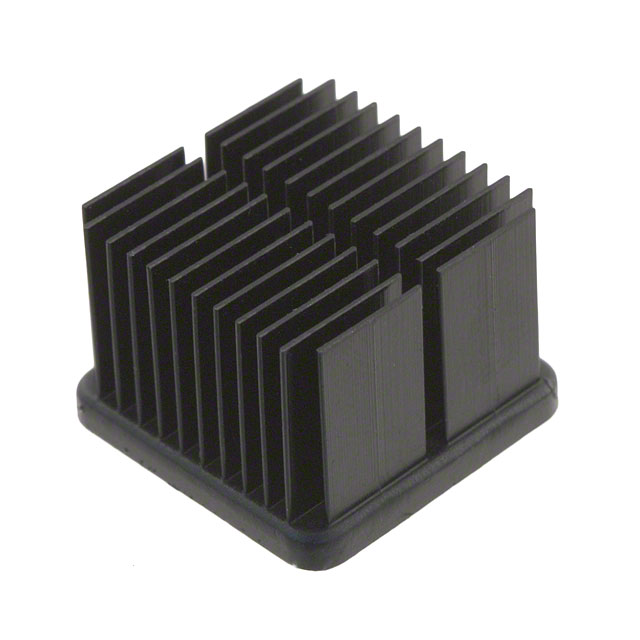

APF19-19-13CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED W/ADHESIVE TAPE

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED W/ADHESIVE TAPE

Technical Specifications

Parameters and characteristics for this part

Specification	APF19-19-13CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length	0.748 in
Length	19 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	200 LFM, 4 °C/W
Type	Top Mount
Width [y]	0.748 in
Width [y]	19 mm

Part	Width [y]	Width [y]	Thermal Resistance @ Forced Air Flow	Shape	Type	Attachment Method	Package Cooled	Material	Material Finish	Fin Height [z]	Fin Height [z]	Length	Length	Fin Height [z]	Shelf Life
Tusonix a Subsidiary of CTS Electronic Components APF19-19-10CB	0.748 in	19 mm	5.3 °C/W 200 LFM	Fins Square	Top Mount	Thermal Tape Adhesive (Not Included)	ASIC BGA CPU LGA	Aluminum	Black Anodized	9.4 mm	0.37 "	0.748 in	19 mm
Tusonix a Subsidiary of CTS Electronic Components APF19-19-13CB/A01	0.748 in	19 mm	4 °C/W 200 LFM	Fins Square	Top Mount	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	Aluminum	Black Anodized		12.7 mm	0.748 in	19 mm	0.5 in	24 Months
Tusonix a Subsidiary of CTS Electronic Components APF19-19-10CB/A01	0.748 in	19 mm	5.3 °C/W 200 LFM	Fins Square	Top Mount	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	Aluminum	Black Anodized	9.4 mm	0.37 "	0.748 in	19 mm		24 Months
Tusonix a Subsidiary of CTS Electronic Components APF19-19-06CB	0.748 in	19 mm	7.1 °C/W 200 LFM	Fins Square	Top Mount	Thermal Tape Adhesive (Not Included)	ASIC BGA CPU LGA	Aluminum	Black Anodized		6.35 mm	0.748 in	19 mm	0.25 in
Tusonix a Subsidiary of CTS Electronic Components APF19-19-06CB/A01	0.748 in	19 mm	7.1 °C/W 200 LFM	Fins Square	Top Mount	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	Aluminum	Black Anodized		6.35 mm	0.748 in	19 mm	0.25 in	24 Months
Tusonix a Subsidiary of CTS Electronic Components APF19-19-13CB	0.748 in	19 mm	4 °C/W 200 LFM	Fins Square	Top Mount	Thermal Tape Adhesive (Not Included)	ASIC BGA CPU LGA	Aluminum	Black Anodized		12.7 mm	0.748 in	19 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
