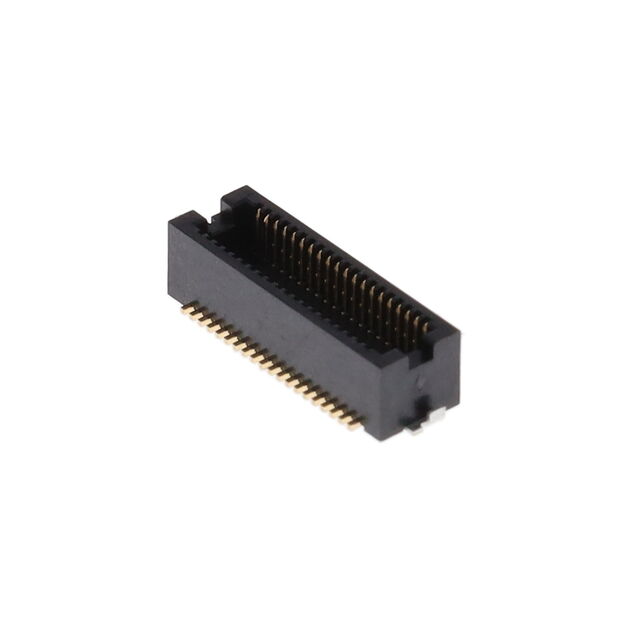

DF12NB(4.0)-40DP-0.5V(51)
ActiveHirose Electric USA, Inc.
CONN HDR 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF12NB(4.0)-40DP-0.5V(51)
ActiveHirose Electric USA, Inc.
CONN HDR 40POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF12NB(4.0)-40DP-0.5V(51) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Solder Retention |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mated Stacking Heights | 4 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.64 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.36 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.27 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| Digi-Reel® | 1 | $ 1.64 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.36 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.27 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| Tape & Reel (TR) | 1000 | $ 0.95 | ||
| 2000 | $ 0.88 | |||
| 3000 | $ 0.85 | |||
| 5000 | $ 0.81 | |||
| 7000 | $ 0.78 | |||
| 10000 | $ 0.76 | |||
Description
General part information
DF12NB(4.0) Series
40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
