173-01800

Active

HELLERMANNTYTON

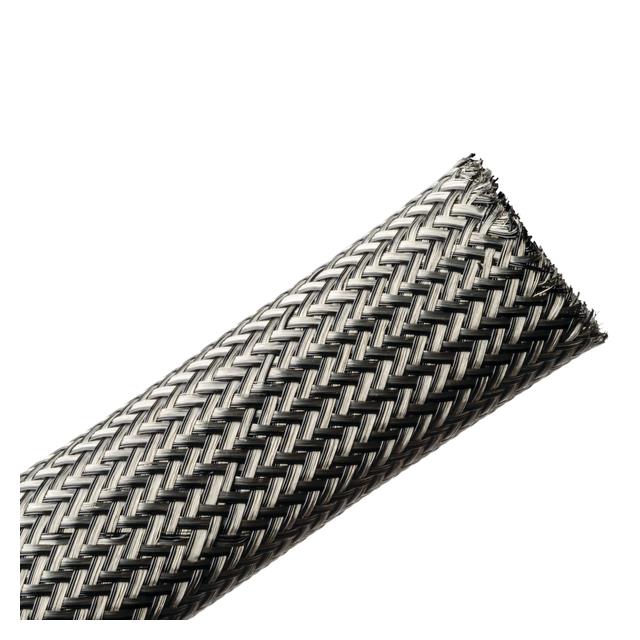

SLEEVING 0.709" X 164' SLVR/BLK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SLEEVING 0.709" X 164' SLVR/BLK

Technical Specifications

Parameters and characteristics for this part

Specification	173-01800

Abrasion Protection	Abrasion Resistant
Color	Black, Silver
Diameter - Inside, Expanded [diameter]	22 mm
Diameter - Inside, Expanded [diameter]	0.866 in
Diameter - Outside, Non-Expanded [diameter]	0.709 in
Diameter - Outside, Non-Expanded [diameter]	18 mm
Features	Shielded, EMI Resistant
Length [x]	50 m
Length [x]	164 ft
Material	Polyethylene Terephthalate (PET) and Copper Tin Plated, Halogen Free
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-40 °C
Type	Sleeve
Type Attributes	Expandable

Part	Color	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material Flammability Rating	Type	Operating Temperature [Min]	Operating Temperature [Max]	Material	Features	Abrasion Protection	Type Attributes	Length [x]	Length [x]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]
HELLERMANNTYTON 173-01800	Black Silver	22 mm	0.866 in	UL94 V-2	Sleeve	-40 °C	347 °F	Polyethylene Terephthalate (PET) and Copper Tin Plated Halogen Free	EMI Resistant Shielded	Abrasion Resistant	Expandable	50 m	164 ft	0.709 in	18 mm
HELLERMANNTYTON 173-01000	Black Silver	13 mm	0.512 in	UL94 V-2	Sleeve	-40 °C	347 °F	Polyethylene Terephthalate (PET) and Copper Tin Plated Halogen Free	EMI Resistant Shielded	Abrasion Resistant	Expandable	50 m	164 ft	0.394 in	10 mm
HELLERMANNTYTON 173-01600	Black Silver	20 mm	0.787 in	UL94 V-2	Sleeve	-40 °C	347 °F	Polyethylene Terephthalate (PET) and Copper Tin Plated Halogen Free	EMI Resistant Shielded	Abrasion Resistant	Expandable	100 m	328 '	0.63 "	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 2464.12

General part information

Sleeve 0.709" (18.00mm) X 164' (50.00m) Silver, Black

Technical documentation and resources
