173-01600

Obsolete

HELLERMANNTYTON

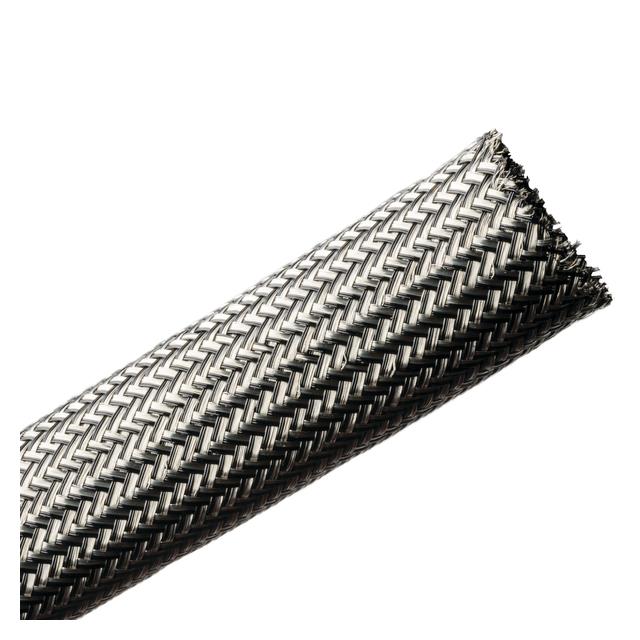

EXPAND SLEEVE 328' SILVER/BLACK

Search across all available documentation for this part.

Obsolete

HELLERMANNTYTON

EXPAND SLEEVE 328' SILVER/BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	173-01600

Abrasion Protection	Abrasion Resistant
Color	Black, Silver
Diameter - Inside, Expanded [diameter]	0.787 in
Diameter - Inside, Expanded [diameter]	20 mm
Diameter - Outside, Non-Expanded [diameter]	0.63 "
Diameter - Outside, Non-Expanded [diameter]	16 mm
Features	Shielded, EMI Resistant
Length [x]	100 m
Length [x]	328 '
Material	Polyethylene Terephthalate (PET) and Copper Tin Plated, Halogen Free
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-40 °C
Type	Sleeve
Type Attributes	Expandable

Part	Color	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material Flammability Rating	Type	Operating Temperature [Min]	Operating Temperature [Max]	Material	Features	Abrasion Protection	Type Attributes	Length [x]	Length [x]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]
HELLERMANNTYTON 173-01800	Black Silver	22 mm	0.866 in	UL94 V-2	Sleeve	-40 °C	347 °F	Polyethylene Terephthalate (PET) and Copper Tin Plated Halogen Free	EMI Resistant Shielded	Abrasion Resistant	Expandable	50 m	164 ft	0.709 in	18 mm
HELLERMANNTYTON 173-01000	Black Silver	13 mm	0.512 in	UL94 V-2	Sleeve	-40 °C	347 °F	Polyethylene Terephthalate (PET) and Copper Tin Plated Halogen Free	EMI Resistant Shielded	Abrasion Resistant	Expandable	50 m	164 ft	0.394 in	10 mm
HELLERMANNTYTON 173-01600	Black Silver	20 mm	0.787 in	UL94 V-2	Sleeve	-40 °C	347 °F	Polyethylene Terephthalate (PET) and Copper Tin Plated Halogen Free	EMI Resistant Shielded	Abrasion Resistant	Expandable	100 m	328 '	0.63 "	16 mm
