180-062-102-001

Obsolete

MH Connectors

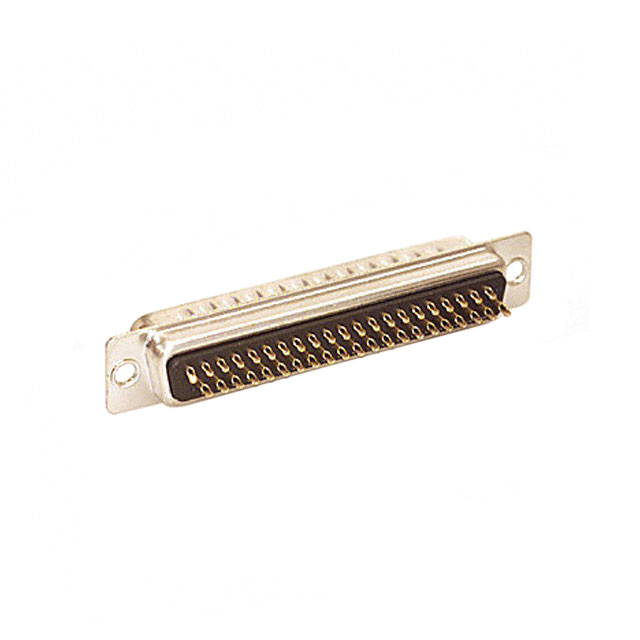

CONN D-SUB HD PLUG 62POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

180-062-102-001

Obsolete

MH Connectors

CONN D-SUB HD PLUG 62POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	180-062-102-001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	62
Number of Rows	3
Shell Size, Connector Layout	4

180-062 Series

Part	Features	Flange Feature	Connector Type	Contact Material	Shell Material, Finish	Number of Rows	Contact Finish Thickness	Dielectric Material	Number of Positions	Material Flammability Rating	Shell Size, Connector Layout	Contact Finish	Current Rating (Amps)	Connector Style	Contact Type	Mounting Type	Note	Termination	Color
MH Connectors 180-062-203L011	Shielded	Cable Side	Receptacle Female Sockets	Brass	Nickel Plated Steel	3	Flash	Polybutylene Terephthalate (PBT)	62	UL94 V-0	4	Gold	5 A	D-Sub High Density	Signal
MH Connectors 180-062-273L010		Cable Side	Receptacle for Female Contacts		Nickel Plated Steel	3			62		4			D-Sub High Density	Signal	Free Hanging (In-Line)	Contacts Not Included
MH Connectors 180-062-113R011	Grounding Indents Shielded	4-40 Board Side	Male Pins Plug	Brass	Nickel Plated Steel	3	Flash	Polybutylene Terephthalate (PBT)	62	UL94 V-0	4	Gold	3 A	D-Sub High Density	Signal	Panel Mount Through Hole		Solder
MH Connectors 180-062-203L001	Shielded	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Brass	Nickel Plated Steel	3	Flash	Polybutylene Terephthalate (PBT)	62	UL94 V-0	4	Gold	5 A	D-Sub High Density	Signal
MH Connectors 180-062-213R011	Shielded	4-40 Board Side	Receptacle Female Sockets	Brass	Nickel Plated Steel	3	Flash	Polybutylene Terephthalate (PBT)	62	UL94 V-0	4	Gold	3 A	D-Sub High Density	Signal	Panel Mount Through Hole		Solder
MH Connectors 180-062-102-001	Grounding Indents	Housing/Shell (Unthreaded)	Male Pins Plug			3	Flash	Polybutylene Terephthalate (PBT)	62	UL94 V-0	4	Gold	2 A	D-Sub High Density	Signal				Black
MH Connectors 180-062-102-021	Grounding Indents	Cable Side	Male Pins Plug			3	Flash	Polybutylene Terephthalate (PBT)	62	UL94 V-0	4	Gold	2 A	D-Sub High Density	Signal				Black
MH Connectors 180-062-103L011	Grounding Indents Shielded	Cable Side	Male Pins Plug	Brass	Nickel Plated Steel	3	Flash	Polybutylene Terephthalate (PBT)	62	UL94 V-0	4	Gold	5 A	D-Sub High Density	Signal
MH Connectors 180-062-172L010	Shielded	Cable Side	Plug for Male Contacts			3			62		4			D-Sub High Density	Signal	Free Hanging (In-Line)	Contacts Not Included
MH Connectors 180-062-103L001	Grounding Indents Shielded	Housing/Shell (Unthreaded)	Male Pins Plug	Brass	Nickel Plated Steel	3	Flash	Polybutylene Terephthalate (PBT)	62	UL94 V-0	4	Gold	5 A	D-Sub High Density	Signal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

180-062 Series

62 Position D-Sub, High Density Plug, Male Pins Connector
