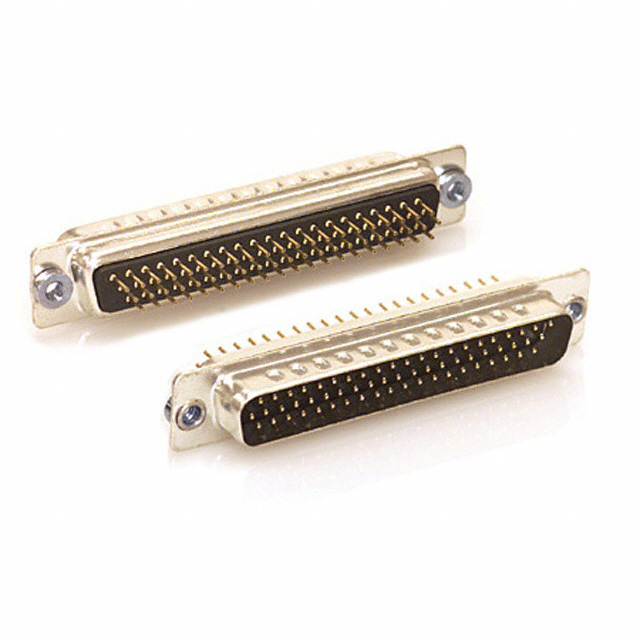

180-062-113R011
ActiveMH Connectors
D SUB CONNECTOR, 62 CONTACTS, PLUG, THROUGH HOLE, DC, 180 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
180-062-113R011
ActiveMH Connectors
D SUB CONNECTOR, 62 CONTACTS, PLUG, THROUGH HOLE, DC, 180 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-062-113R011 |
|---|---|
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents, Shielded |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 62 |
| Number of Rows | 3 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
180-062 Series
| Part | Features | Flange Feature | Connector Type | Contact Material | Shell Material, Finish | Number of Rows | Contact Finish Thickness | Dielectric Material | Number of Positions | Material Flammability Rating | Shell Size, Connector Layout | Contact Finish | Current Rating (Amps) | Connector Style | Contact Type | Mounting Type | Note | Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Shielded | Cable Side | Receptacle Female Sockets | Brass | Nickel Plated Steel | 3 | Flash | Polybutylene Terephthalate (PBT) | 62 | UL94 V-0 | 4 | Gold | 5 A | D-Sub High Density | Signal | ||||
MH Connectors | Cable Side | Receptacle for Female Contacts | Nickel Plated Steel | 3 | 62 | 4 | D-Sub High Density | Signal | Free Hanging (In-Line) | Contacts Not Included | |||||||||
MH Connectors | Grounding Indents Shielded | 4-40 Board Side | Male Pins Plug | Brass | Nickel Plated Steel | 3 | Flash | Polybutylene Terephthalate (PBT) | 62 | UL94 V-0 | 4 | Gold | 3 A | D-Sub High Density | Signal | Panel Mount Through Hole | Solder | ||
MH Connectors | Shielded | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Brass | Nickel Plated Steel | 3 | Flash | Polybutylene Terephthalate (PBT) | 62 | UL94 V-0 | 4 | Gold | 5 A | D-Sub High Density | Signal | ||||
MH Connectors | Shielded | 4-40 Board Side | Receptacle Female Sockets | Brass | Nickel Plated Steel | 3 | Flash | Polybutylene Terephthalate (PBT) | 62 | UL94 V-0 | 4 | Gold | 3 A | D-Sub High Density | Signal | Panel Mount Through Hole | Solder | ||
MH Connectors | Grounding Indents | Housing/Shell (Unthreaded) | Male Pins Plug | 3 | Flash | Polybutylene Terephthalate (PBT) | 62 | UL94 V-0 | 4 | Gold | 2 A | D-Sub High Density | Signal | Black | |||||
MH Connectors | Grounding Indents | Cable Side | Male Pins Plug | 3 | Flash | Polybutylene Terephthalate (PBT) | 62 | UL94 V-0 | 4 | Gold | 2 A | D-Sub High Density | Signal | Black | |||||
MH Connectors | Grounding Indents Shielded | Cable Side | Male Pins Plug | Brass | Nickel Plated Steel | 3 | Flash | Polybutylene Terephthalate (PBT) | 62 | UL94 V-0 | 4 | Gold | 5 A | D-Sub High Density | Signal | ||||
MH Connectors | Shielded | Cable Side | Plug for Male Contacts | 3 | 62 | 4 | D-Sub High Density | Signal | Free Hanging (In-Line) | Contacts Not Included | |||||||||
MH Connectors | Grounding Indents Shielded | Housing/Shell (Unthreaded) | Male Pins Plug | Brass | Nickel Plated Steel | 3 | Flash | Polybutylene Terephthalate (PBT) | 62 | UL94 V-0 | 4 | Gold | 5 A | D-Sub High Density | Signal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
180-062 Series
62 Position D-Sub, High Density Plug, Male Pins Connector
