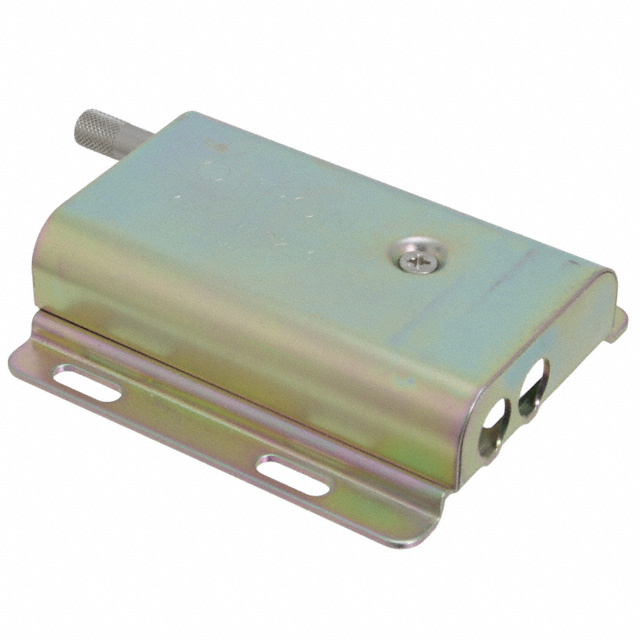

1VAP2-6 V-15-1B6

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 15A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 15A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Mounting Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Ingress Protection	Mechanical Life	Operating Force	Overtravel	Overtravel	Current Rating (Amps)	Termination Style	Switch Function	Electrical Life	Pretravel	Pretravel
Omron Electronics Inc-EMC Div 1VAP2-6 V-15-1B6	SPST-NO	Chassis Mount	125 V	-25 °C	80 C	Push-Pull Plunger	IP00	100000 Cycles	1500 gf	3 mm	0.118 in	15 A	Screw Terminal	Off-Mom	25000 Steps
Omron Electronics Inc-EMC Div 1VAP2-6	SPST-NO	Chassis Mount	125 V	-25 °C	80 C	Push-Pull Plunger	IP00	100000 Cycles	1500 gf	3 mm	0.118 in	15 A	Screw Terminal	Off-Mom	25000 Steps
Omron Electronics Inc-EMC Div 1VAP2-2	SPDT	Chassis Mount	125 V	-25 °C	80 C	Push-Pull Plunger	IP00	100000 Cycles	1795 gf	2 mm	0.079 in	15 A	Screw Terminal	On-Mom	25000 Steps	4.4 mm	0.172 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.27

General part information

Switch SPST-NO Chassis Mount

Technical documentation and resources

No documents available
