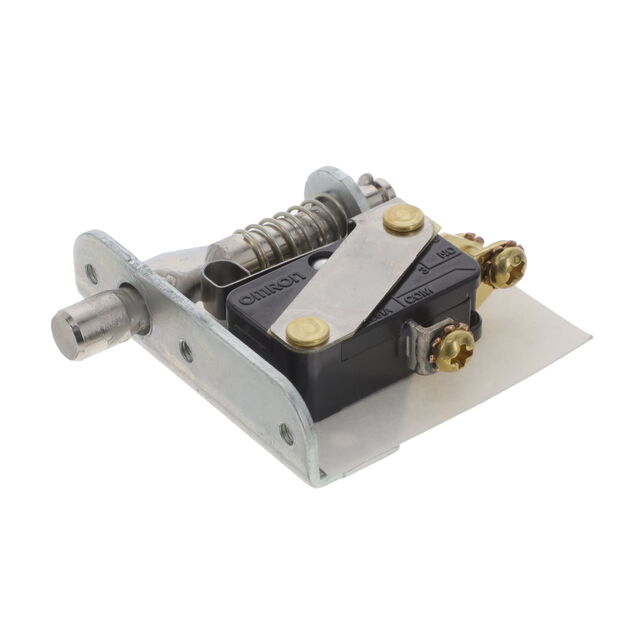

1VAP2-2
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
1VAP2-2
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1VAP2-2 |
|---|---|
| Actuator Type | Push-Pull Plunger |
| Circuit | SPDT |
| Current Rating (Amps) | 15 A |
| Electrical Life | 25000 Steps |
| Ingress Protection | IP00 |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 1795 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 2 mm |
| Overtravel | 0.079 in |
| Pretravel | 4.4 mm |
| Pretravel | 0.172 " |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 84.48 | |
| 10 | $ 70.01 | |||
| 25 | $ 64.96 | |||
| 40 | $ 62.52 | |||
| 80 | $ 59.07 | |||
Description
General part information
1VAP2 Series
Switch SPDT Chassis Mount
