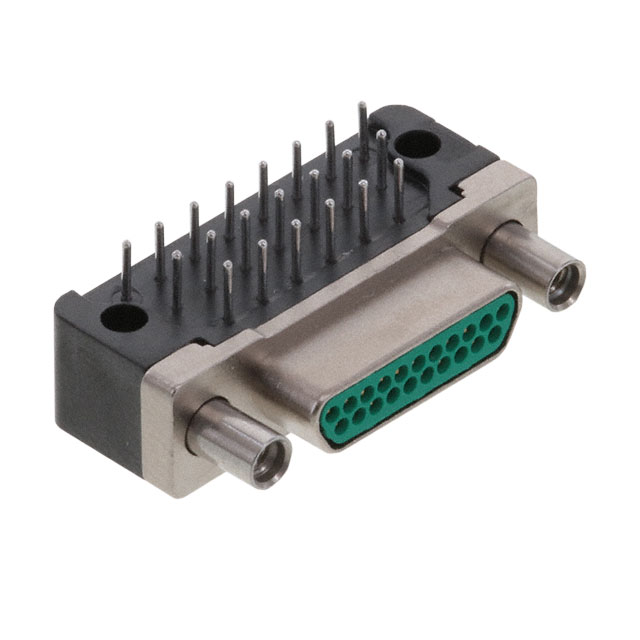

CONN MICRO-D PLUG 21POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DCCM21PCBRP
ActiveCinch Connectivity Solutions Trompeter
CONN MICRO-D PLUG 21POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCCM21PCBRP |
|---|---|
| Backset Spacing | 3.3 mm |
| Backset Spacing | 0.13 in |
| Connector Style | Micro-D, D-Type |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Diallyl Phthalate (DAP), Glass Filled |
| Features | Shielded |
| Flange Feature | Female Screwlock, Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 21 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Chromate Plated Cadmium, Aluminum Alloy |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
DCCM21 Series
| Part | Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | Color | 1st Connector | 2nd Connector | Length [x] | Length [x] | Flange Feature | Connector Type | Contact Type | Current Rating (Amps) | Shell Material, Finish | Features | Dielectric Material | Mounting Type | Connector Style | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Material Flammability Rating | Contact Material | Number of Rows | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter | D-Type Micro-D | 50 µin | 1.27 µm | Gold | 21 | Individual Multiple | Plug Male Pins | Individual Wire Leads | 457.2 mm | 1.5 ft | |||||||||||||||||||
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | Gold | 21 | Female Screwlock Mating Side | Receptacle Female Sockets | Signal | 3 A | Aluminum Alloy Electroless Nickel Plated | Shielded | Diallyl Phthalate (DAP) Glass Filled | Through Hole | D-Type Micro-D | 135 °C | -55 °C | 0.043 | 0.05 | Solder | UL94 V-0 | Copper Alloy | 2 | ||||||||
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | Gold | 21 | Female Screwlock Mating Side | Male Pins Plug | Signal | 3 A | Aluminum Alloy Yellow Chromate Plated Cadmium | Shielded | Diallyl Phthalate (DAP) Glass Filled | Through Hole Right Angle | D-Type Micro-D | 135 °C | -55 °C | 0.043 | 0.05 | Solder | UL94 V-0 | Copper Alloy | 2 | 3.3 mm | 0.13 in | ||||||
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | Gold | 21 | Female Screwlock Mating Side | Male Pins Plug | Signal | 3 A | Aluminum Alloy Yellow Chromate Plated Cadmium | Shielded | Diallyl Phthalate (DAP) Glass Filled | Through Hole | D-Type Micro-D | 135 °C | -55 °C | 0.043 | 0.05 | Solder | UL94 V-0 | Copper Alloy | 2 | ||||||||
Cinch Connectivity Solutions Trompeter | D-Type Micro-D | 50 µin | 1.27 µm | Gold | 21 | Individual Multiple | Plug Male Pins | Individual Wire Leads | 914.4 mm | 3 ft | |||||||||||||||||||
Cinch Connectivity Solutions Trompeter | 50 µin | 1.27 µm | Gold | 21 | Female Screwlock Mating Side | Male Pins Plug | Signal | 3 A | Aluminum Alloy Electroless Nickel Plated | Shielded | Diallyl Phthalate (DAP) Glass Filled | Through Hole | D-Type Micro-D | 135 °C | -55 °C | 0.043 | 0.05 | Solder | UL94 V-0 | Copper Alloy | 2 |
