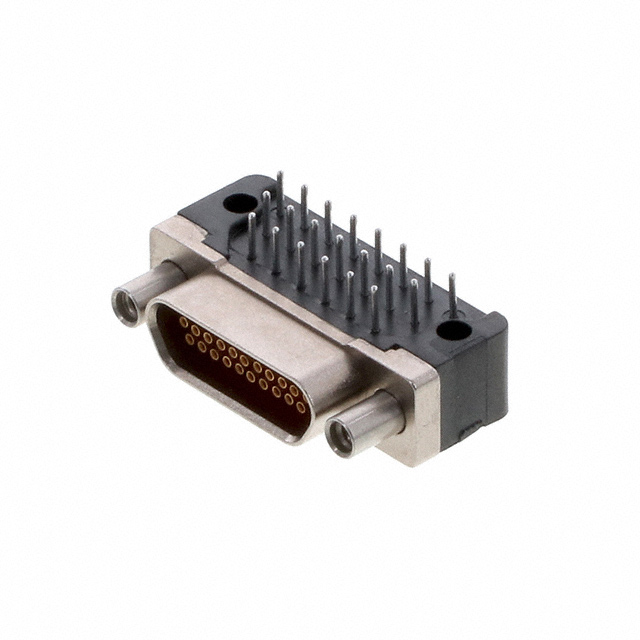

DCCM21SBSPN

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D RCPT 21P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DCCM21SBSPN

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D RCPT 21P VERT SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCCM21SBSPN

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Features	Shielded
Flange Feature	Female Screwlock, Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	21
Number of Rows	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Termination	Solder

DCCM21 Series

Part	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Color	1st Connector	2nd Connector	Length [x]	Length [x]	Flange Feature	Connector Type	Contact Type	Current Rating (Amps)	Shell Material, Finish	Features	Dielectric Material	Mounting Type	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Material Flammability Rating	Contact Material	Number of Rows	Backset Spacing	Backset Spacing
Cinch Connectivity Solutions Trompeter DCCM21P6E5-18.0B	D-Type Micro-D	50 µin	1.27 µm	Gold	21	Individual Multiple	Plug Male Pins	Individual Wire Leads	457.2 mm	1.5 ft
Cinch Connectivity Solutions Trompeter DCCM21SBSPN		50 µin	1.27 µm	Gold	21						Female Screwlock Mating Side	Receptacle Female Sockets	Signal	3 A	Aluminum Alloy Electroless Nickel Plated	Shielded	Diallyl Phthalate (DAP) Glass Filled	Through Hole	D-Type Micro-D	135 °C	-55 °C	0.043	0.05	Solder	UL94 V-0	Copper Alloy	2
Cinch Connectivity Solutions Trompeter DCCM21PCBRP		50 µin	1.27 µm	Gold	21						Female Screwlock Mating Side	Male Pins Plug	Signal	3 A	Aluminum Alloy Yellow Chromate Plated Cadmium	Shielded	Diallyl Phthalate (DAP) Glass Filled	Through Hole Right Angle	D-Type Micro-D	135 °C	-55 °C	0.043	0.05	Solder	UL94 V-0	Copper Alloy	2	3.3 mm	0.13 in
Cinch Connectivity Solutions Trompeter DCCM21PBSP		50 µin	1.27 µm	Gold	21						Female Screwlock Mating Side	Male Pins Plug	Signal	3 A	Aluminum Alloy Yellow Chromate Plated Cadmium	Shielded	Diallyl Phthalate (DAP) Glass Filled	Through Hole	D-Type Micro-D	135 °C	-55 °C	0.043	0.05	Solder	UL94 V-0	Copper Alloy	2
Cinch Connectivity Solutions Trompeter DCCM21P6E5-36.0BN	D-Type Micro-D	50 µin	1.27 µm	Gold	21	Individual Multiple	Plug Male Pins	Individual Wire Leads	914.4 mm	3 ft
Cinch Connectivity Solutions Trompeter DCCM21PBSPN		50 µin	1.27 µm	Gold	21						Female Screwlock Mating Side	Male Pins Plug	Signal	3 A	Aluminum Alloy Electroless Nickel Plated	Shielded	Diallyl Phthalate (DAP) Glass Filled	Through Hole	D-Type Micro-D	135 °C	-55 °C	0.043	0.05	Solder	UL94 V-0	Copper Alloy	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 160.16
		10	$ 125.08
		25	$ 114.00
		50	$ 106.54
		100	$ 99.79

Description

General part information

DCCM21 Series

21 Position D-Type, Micro-D Receptacle, Female Sockets Connector
