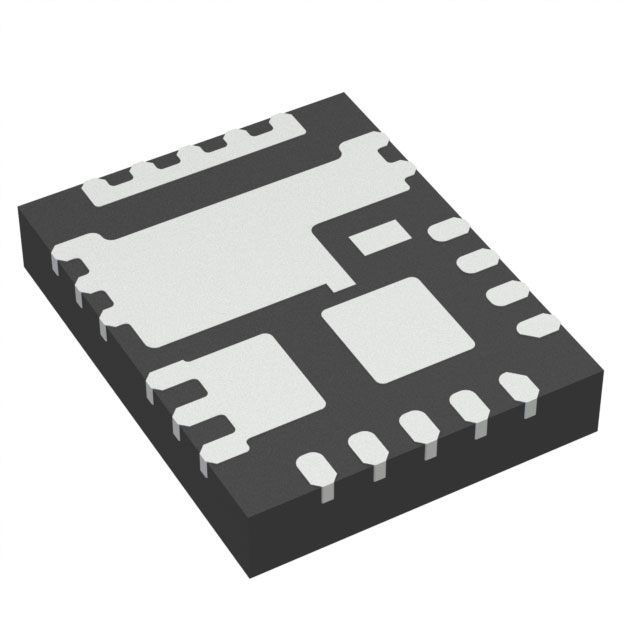

AOZ5007AQI

Active

Alpha & Omega Semiconductor Inc.

25V/30A DRMOS 5V PWM IN QFN3.5X4

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

25V/30A DRMOS 5V PWM IN QFN3.5X4

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ5007AQI

Applications	Synchronous Buck Converters
Current - Output / Channel	30 A
Current - Peak Output	80 A
Fault Protection	Shoot-Through, UVLO
Features	Bootstrap Circuit, Diode Emulation
Interface	PWM
Load Type	Capacitive, Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	22-PowerVFQFN Module
Supplier Device Package	22-QFN
Supplier Device Package [x]	4.5
Supplier Device Package [y]	3.5
Technology	DrMOS
Voltage - Load [Max]	25 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Package / Case	Voltage - Load [Max]	Voltage - Load [Min]	Current - Peak Output	Applications	Mounting Type	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Features	Operating Temperature [Min]	Operating Temperature [Max]	Load Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Current - Output / Channel	Fault Protection
Alpha & Omega Semiconductor Inc. AOZ5007AQI	22-PowerVFQFN Module	25 V	4.5 V	80 A	Synchronous Buck Converters	Surface Mount	PWM	4.5 V	5.5 V	DrMOS	Bootstrap Circuit Diode Emulation	-40 °C	125 ¯C	Capacitive Inductive	4.5	3.5	22-QFN	30 A	Shoot-Through UVLO
Alpha & Omega Semiconductor Inc. AOZ5007QI-01	40-WFQFN Exposed Pad	25 V	4.5 V	80 A	Synchronous Buck Converters	Surface Mount	PWM	4.5 V	5.5 V	DrMOS	Bootstrap Circuit Diode Emulation	-40 °C	85 °C	Capacitive Inductive			40-QFN (6x6)	30 A	Shoot-Through UVLO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.74
	Digi-Reel®	1	$ 1.74
	Tape & Reel (TR)	6000	$ 0.77

General part information

Half Bridge Driver Synchronous Buck Converters DrMOS 22-QFN (4.5x3.5)
