AOZ5007QI-01

Obsolete

Alpha & Omega Semiconductor Inc.

IC REG BUCK 50A 40QFN

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

IC REG BUCK 50A 40QFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ5007QI-01

Applications	Synchronous Buck Converters
Current - Output / Channel	30 A
Current - Peak Output	80 A
Fault Protection	Shoot-Through, UVLO
Features	Bootstrap Circuit, Diode Emulation
Interface	PWM
Load Type	Capacitive, Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

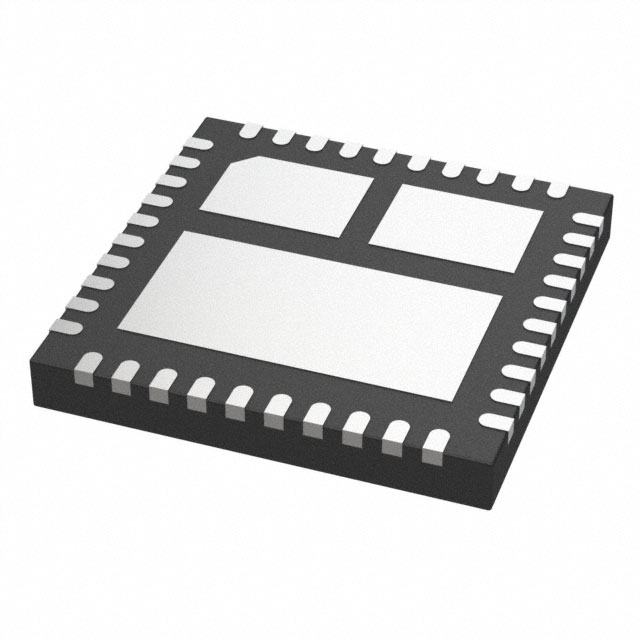

Package / Case	40-WFQFN Exposed Pad
Supplier Device Package	40-QFN (6x6)
Technology	DrMOS
Voltage - Load [Max]	25 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Package / Case	Voltage - Load [Max]	Voltage - Load [Min]	Current - Peak Output	Applications	Mounting Type	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Features	Operating Temperature [Min]	Operating Temperature [Max]	Load Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Current - Output / Channel	Fault Protection
Alpha & Omega Semiconductor Inc. AOZ5007AQI	22-PowerVFQFN Module	25 V	4.5 V	80 A	Synchronous Buck Converters	Surface Mount	PWM	4.5 V	5.5 V	DrMOS	Bootstrap Circuit Diode Emulation	-40 °C	125 ¯C	Capacitive Inductive	4.5	3.5	22-QFN	30 A	Shoot-Through UVLO
Alpha & Omega Semiconductor Inc. AOZ5007QI-01	40-WFQFN Exposed Pad	25 V	4.5 V	80 A	Synchronous Buck Converters	Surface Mount	PWM	4.5 V	5.5 V	DrMOS	Bootstrap Circuit Diode Emulation	-40 °C	85 °C	Capacitive Inductive			40-QFN (6x6)	30 A	Shoot-Through UVLO
