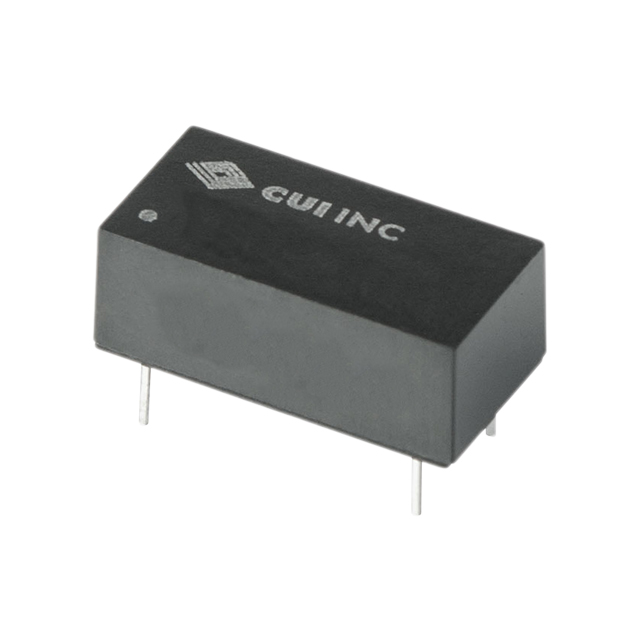

PEM2-S12-D15-D

Obsolete

CUI Inc.

DC DC CONVERTER +/-15V 2W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER +/-15V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Voltage - Input (Max) [Max]	Voltage - Output 1	Approval Agency	Number of Outputs	Applications	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Current - Output (Max) [Max]	Type	Voltage - Isolation	Standard Number	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
CUI Inc. PEM2-S12-S15-D	SCP	13.2 V	15 V	CB Scheme EN IEC	1	ITE (Commercial)	14-DIP Module 6 Leads	0.79 in	8.2 mm	9.9 mm	0.32 "	0.39 "	20.1 mm	Through Hole	2 W	-40 °C	105 ░C	84 %	133 mA	Isolated Module	3000 V	55024 55032 Class A 60950-1	10.8 V
CUI Inc. PEM2-S12-D12-S	SCP	13.2 V	12 V	CB Scheme EN IEC UL	2	ITE (Commercial)	7-SIP Module 5 Leads	0.77 in			0.39 in	0.28 in	19.6 mm	Through Hole	2 W	-40 °C	105 ░C	85 %		Isolated Module	3000 V	55024 55032 Class A 60950-1	10.8 V	7 mm	10 mm	-12 V
CUI Inc. PEM2-S12-D15-D	SCP	13.2 V	15 V	CB Scheme EN IEC UL	2	ITE (Commercial)	14-DIP Module 6 Leads	0.79 in	8.2 mm	9.9 mm	0.32 "	0.39 "	20.1 mm	Through Hole	2 W	-40 °C	105 ░C	84 %		Isolated Module	3000 V	55024 55032 Class A 60950-1	10.8 V			-15 V	67 mA	67 mA
CUI Inc. PEM2-S12-S5-S	SCP	13.2 V	5 V	CB Scheme EN IEC UL	1	ITE (Commercial)	7-SIP Module 4 Leads	0.77 in			0.39 in	0.28 in	19.6 mm	Through Hole	2 W	-40 °C	105 ░C	84 %	400 mA	Isolated Module	3000 V	55024 55032 Class A 60950-1	10.8 V	7 mm	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 10.8V - 13.2V Input

Technical documentation and resources

No documents available
