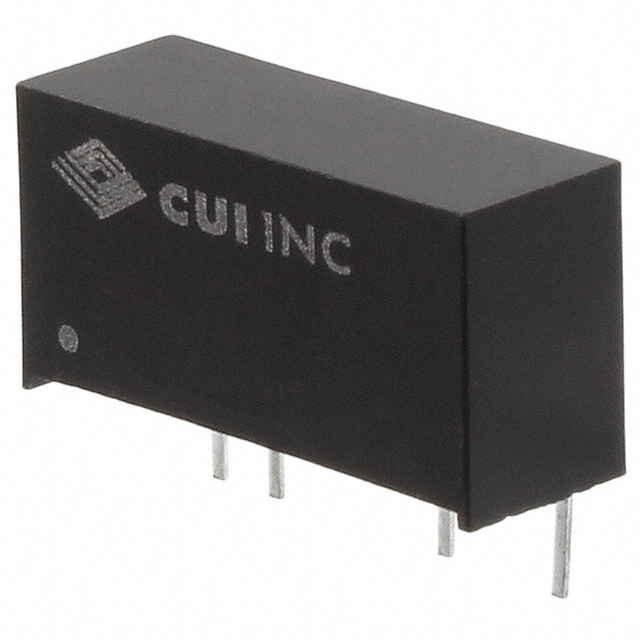

PEM2-S12-S5-S

Obsolete

CUI Inc.

DC DC CONVERTER 5V 2W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 5V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Voltage - Input (Max) [Max]	Voltage - Output 1	Approval Agency	Number of Outputs	Applications	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Current - Output (Max) [Max]	Type	Voltage - Isolation	Standard Number	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
CUI Inc. PEM2-S12-S15-D	SCP	13.2 V	15 V	CB Scheme EN IEC	1	ITE (Commercial)	14-DIP Module 6 Leads	0.79 in	8.2 mm	9.9 mm	0.32 "	0.39 "	20.1 mm	Through Hole	2 W	-40 °C	105 ░C	84 %	133 mA	Isolated Module	3000 V	55024 55032 Class A 60950-1	10.8 V
CUI Inc. PEM2-S12-D12-S	SCP	13.2 V	12 V	CB Scheme EN IEC UL	2	ITE (Commercial)	7-SIP Module 5 Leads	0.77 in			0.39 in	0.28 in	19.6 mm	Through Hole	2 W	-40 °C	105 ░C	85 %		Isolated Module	3000 V	55024 55032 Class A 60950-1	10.8 V	7 mm	10 mm	-12 V
CUI Inc. PEM2-S12-D15-D	SCP	13.2 V	15 V	CB Scheme EN IEC UL	2	ITE (Commercial)	14-DIP Module 6 Leads	0.79 in	8.2 mm	9.9 mm	0.32 "	0.39 "	20.1 mm	Through Hole	2 W	-40 °C	105 ░C	84 %		Isolated Module	3000 V	55024 55032 Class A 60950-1	10.8 V			-15 V	67 mA	67 mA
CUI Inc. PEM2-S12-S5-S	SCP	13.2 V	5 V	CB Scheme EN IEC UL	1	ITE (Commercial)	7-SIP Module 4 Leads	0.77 in			0.39 in	0.28 in	19.6 mm	Through Hole	2 W	-40 °C	105 ░C	84 %	400 mA	Isolated Module	3000 V	55024 55032 Class A 60950-1	10.8 V	7 mm	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 400mA 10.8V - 13.2V Input

Technical documentation and resources

No documents available
