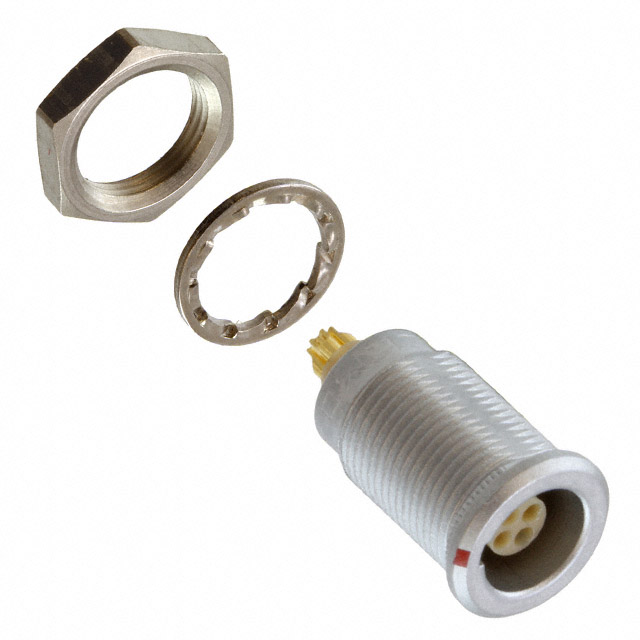

EGG.00.304.CLL

Active

LEMO

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.00.304.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

Part	Material Flammability Rating	Ingress Protection	Shell Material	Termination	Fastening Type	Insert Material	Shielding	Orientation	Connector Type	Contact Finish - Mating	Mounting Type	Number of Positions	Mounting Feature	Contact Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Shell Finish	Current Rating (Amps)	Features
LEMO EGG.00.304.CLN	UL94 V-0	IP50	Brass	Solder	Push-Pull	Polyetheretherketone (PEEK)	Shielded	G	Receptacle Female Sockets	Gold	Panel Mount Through Hole	4	Bulkhead - Rear Side Nut	Bronze	Metal	-55 °C	250 °C	304	59 Áin	1.5 Ám	Silver	Chrome	2 A
LEMO EGG.00.304.ZLL	UL94 V-0	IP50				Polyetheretherketone (PEEK)	Shielded	G	Female Sockets Insert	Gold		4		Bronze		-55 °C	250 °C	304	59 Áin	1.5 Ám			2 A	Insert Only Requires Shell
LEMO EGG.00.304.CLL	UL94 V-0	IP50	Brass		Push-Pull	Polyetheretherketone (PEEK)	Shielded	G	Receptacle Female Sockets	Gold		4	Bulkhead - Rear Side Nut	Bronze	Metal	-55 °C	250 °C	304	59 Áin	1.5 Ám	Silver	Chrome	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
