EGG.00.304.ZLL

Active

LEMO

CONN FMALE INSERT 4P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN FMALE INSERT 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.00.304.ZLL

Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2 A
Features	Insert Only, Requires Shell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Shell Size - Insert	304
Shielding	Shielded

Part	Material Flammability Rating	Ingress Protection	Shell Material	Termination	Fastening Type	Insert Material	Shielding	Orientation	Connector Type	Contact Finish - Mating	Mounting Type	Number of Positions	Mounting Feature	Contact Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Shell Finish	Current Rating (Amps)	Features
LEMO EGG.00.304.CLN	UL94 V-0	IP50	Brass	Solder	Push-Pull	Polyetheretherketone (PEEK)	Shielded	G	Receptacle Female Sockets	Gold	Panel Mount Through Hole	4	Bulkhead - Rear Side Nut	Bronze	Metal	-55 °C	250 °C	304	59 Áin	1.5 Ám	Silver	Chrome	2 A
LEMO EGG.00.304.ZLL	UL94 V-0	IP50				Polyetheretherketone (PEEK)	Shielded	G	Female Sockets Insert	Gold		4		Bronze		-55 °C	250 °C	304	59 Áin	1.5 Ám			2 A	Insert Only Requires Shell
LEMO EGG.00.304.CLL	UL94 V-0	IP50	Brass		Push-Pull	Polyetheretherketone (PEEK)	Shielded	G	Receptacle Female Sockets	Gold		4	Bulkhead - Rear Side Nut	Bronze	Metal	-55 °C	250 °C	304	59 Áin	1.5 Ám	Silver	Chrome	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

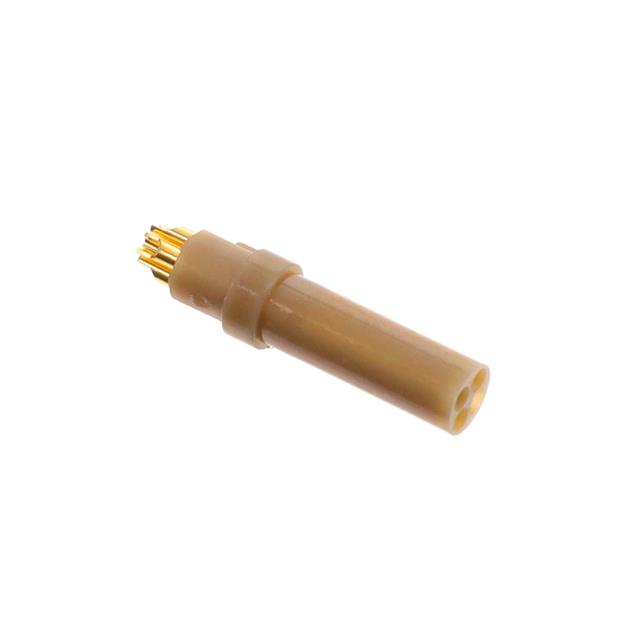

4 Position Circular Connector Insert, Female Sockets Solder Cup
