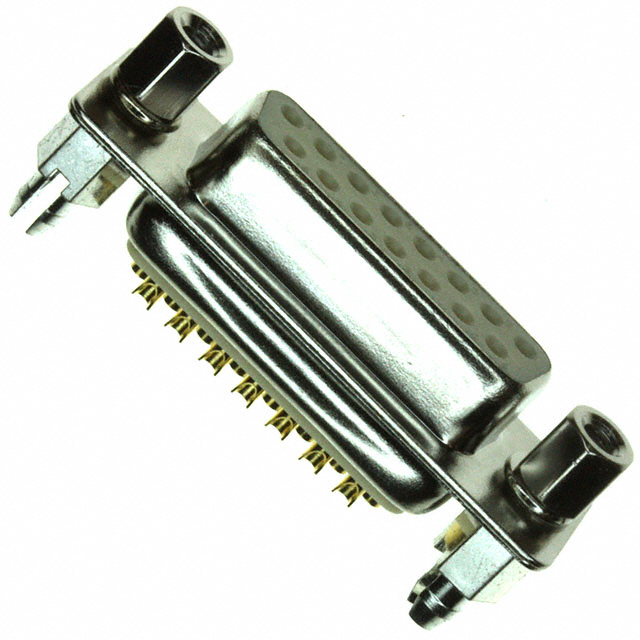

172-E15-203R911 - 172-E15-203R911

172-E15-203R911

Active
MH Connectors

D SUB CONNECTOR, DB15, RECEPTACLE, 172-E M SERIES, 15 CONTACTS, DA, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+4
172-E15-203R911 - 172-E15-203R911

172-E15-203R911

Active
MH Connectors

D SUB CONNECTOR, DB15, RECEPTACLE, 172-E M SERIES, 15 CONTACTS, DA, SOLDER

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+4

Technical Specifications

Parameters and characteristics for this part

Specification172-E15-203R911
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
Flange FeatureMating Side, Female Screwlock (4-40), Cable Side (4-40)
Material Flammability RatingUL94 V-0
Number of Positions15
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout2
Wire Gauge [Max]26 AWG
Wire Gauge [Min]20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 8.32
10$ 6.38
25$ 5.76
40$ 5.47
80$ 5.07
230$ 4.54
440$ 4.25
945$ 3.95
2400$ 3.64
LCSCPiece 1$ 9.84
210$ 3.93
490$ 3.80
980$ 3.73
NewarkEach 100$ 5.94
500$ 5.07
1000$ 4.31
5000$ 3.87

Description

General part information

172-E15 Series

15 Position D-Sub Receptacle, Female Sockets Connector
