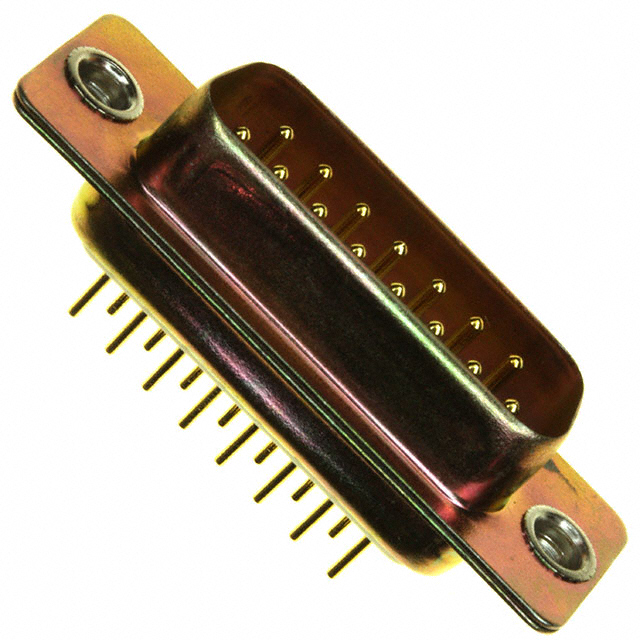

172-E15-111R011

Obsolete

MH Connectors

CONN D-SUB PLUG 15P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide

172-E15-111R011

Obsolete

MH Connectors

CONN D-SUB PLUG 15P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-E15-111R011

Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	2
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout	2
Termination	Solder

172-E15 Series

Part	Contact Finish	Material Flammability Rating	Flange Feature	Dielectric Material	Number of Rows	Shell Size, Connector Layout	Contact Finish Thickness	Current Rating (Amps)	Contact Material	Contact Type	Connector Style	Number of Positions	Connector Type	Shell Material, Finish	Color	Termination	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Features
MH Connectors 172-E15-201-911	Gold	UL94 V-0	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Polybutylene Terephthalate (PBT)	2	2	Flash	5 A	Brass	Signal	D-Sub	15	Receptacle Female Sockets	Steel Yellow Chromate Plated
MH Connectors 172-E15-111-031	Gold	UL94 V-0	4-40	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Flash	5 A		Signal	D-Sub	15	Male Pins Plug	Steel Yellow Chromate Plated	White	Solder	Panel Mount Through Hole
MH Connectors 172-E15-111R011	Gold	UL94 V-0	4-40 Board Side	Polyamide (PA6T) Nylon 6T	2	2	Flash	5 A	Brass	Signal	D-Sub	15	Male Pins Plug	Steel Yellow Chromate Plated	White	Solder	Panel Mount Through Hole
MH Connectors 172-E15-111-021	Gold	UL94 V-0	4-40 Board Side	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Flash	5 A		Signal	D-Sub	15	Male Pins Plug	Steel Yellow Chromate Plated	White	Solder	Panel Mount Through Hole
MH Connectors 172-E15-203R911	Gold	UL94 V-0	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Polybutylene Terephthalate (PBT)	2	2	Flash	5 A	Brass	Signal	D-Sub	15	Receptacle Female Sockets	Nickel Plated Steel	White			20 AWG	26 AWG
MH Connectors 172-E15-201-011	Gold	UL94 V-0	Cable Side	Polybutylene Terephthalate (PBT)	2	2	Flash	5 A	Brass	Signal	D-Sub	15	Receptacle Female Sockets	Steel Yellow Chromate Plated
MH Connectors 172-E15-103R911	Gold	UL94 V-0	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Polybutylene Terephthalate (PBT)	2	2	Flash	5 A	Brass	Signal	D-Sub	15	Male Pins Plug	Nickel Plated Steel	White			20 AWG	26 AWG	Board Lock Grounding Indents
MH Connectors 172-E15-211-011	Gold	UL94 V-0	4-40 Board Side	Polybutylene Terephthalate (PBT)	2	2	Flash	5 A		Signal	D-Sub	15	Receptacle Female Sockets	Steel Yellow Chromate Plated	White	Solder	Panel Mount Through Hole
MH Connectors 172-E15-111-011	Gold	UL94 V-0	4-40 Board Side	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Flash	5 A		Signal	D-Sub	15	Male Pins Plug	Steel Yellow Chromate Plated	White	Solder	Panel Mount Through Hole
MH Connectors 172-E15-213R031	Gold	UL94 V-0	4-40	Polyamide (PA6T) Nylon 6T	2	2	Flash	5 A	Brass	Signal	D-Sub	15	Receptacle Female Sockets	Nickel Plated Steel	White	Solder	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

172-E15 Series

15 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Backshell Reference Guide

Datasheet
