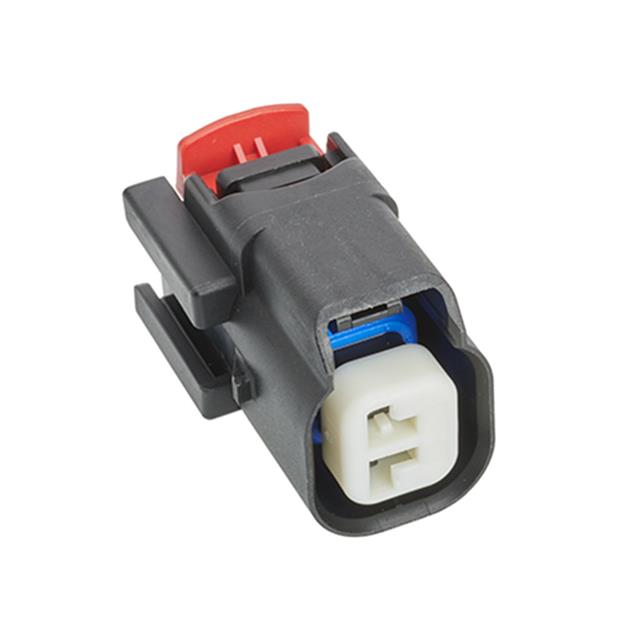

0340620024

Active

Molex

CONN RCPT HSG 2POS 5.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0340620024

Active

Molex

CONN RCPT HSG 2POS 5.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0340620024

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in

034062 Series

Part	Pitch [x]	Pitch [x]	Number of Rows	Color	Contact Termination	Note	Features	Number of Positions	Contact Type	Mounting Type	Connector Type	Fastening Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0340620006	5 mm	0.197 in	1	Gray	Crimp	Contacts Not Included	Terminal Position Lock (TPA)	2	Female Socket	Free Hanging (In-Line)	Receptacle	Latch Holder
Molex 0340620027	5 mm	0.197 in	1	Black	Crimp	Contacts Not Included	Connector Position Assurance (CPA) Sealed	2	Female Socket	Free Hanging (In-Line)	Receptacle	Latch Holder	Polyamide (PA6) Nylon 6	125 °C	-40 °C
Molex 0340624009	5 mm	0.197 in	1	Black	Crimp	Contacts Not Included	Connector Position Assurance (CPA)	2	Female Socket	Free Hanging (In-Line)	Receptacle	Latch Holder	Polyamide (PA6) Nylon 6	155 °C	-40 °C
Molex 0340620015	5 mm	0.197 in	1	Black	Crimp	Contacts Not Included	Terminal Position Lock (TPA)	2	Female Socket	Bracket Mount	Receptacle	Latch Holder
Molex 0340620038	5 mm	0.197 in	1	Black	Crimp	Contacts Not Included	Connector Position Assurance (CPA) Sealed	2	Female Socket	Free Hanging (In-Line)	Receptacle	Latch Holder	Polyamide (PA6) Nylon 6	125 °C	-40 °C
Molex 0340624004	5 mm	0.197 in	1	Black	Crimp	Contacts Not Included		2	Female Socket	Free Hanging (In-Line)	Receptacle	Latch Holder	Polyamide (PA6) Nylon 6	155 °C	-40 °C
Molex 0340620007	5 mm	0.197 in	1	Black	Crimp	Contacts Not Included	Terminal Position Lock (TPA)	2	Female Socket	Free Hanging (In-Line)	Receptacle	Latch Holder
Molex 0340620024	5 mm	0.197 in	1	Black	Crimp	Contacts Not Included	Sealed	2	Female Socket	Free Hanging (In-Line)	Receptacle	Latch Holder	Polyamide (PA6) Nylon 6	125 °C	-40 °C
Molex 0340620056	5 mm	0.197 in	1	Black	Crimp	Contacts Not Included	Connector Position Assurance (CPA)	2	Female Socket	Free Hanging (In-Line)	Receptacle	Latch Holder	Polyamide (PA6) Nylon 6 Glass Filled	155 °C	-40 °C
Molex 0340620005	5 mm	0.197 in	1	Black	Crimp	Contacts Not Included	Terminal Position Lock (TPA)	2	Female Socket	Free Hanging (In-Line)	Receptacle	Latch Holder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.98
		10	$ 0.84
		100	$ 0.69
		1000	$ 0.64

Description

General part information

034062 Series

2 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
