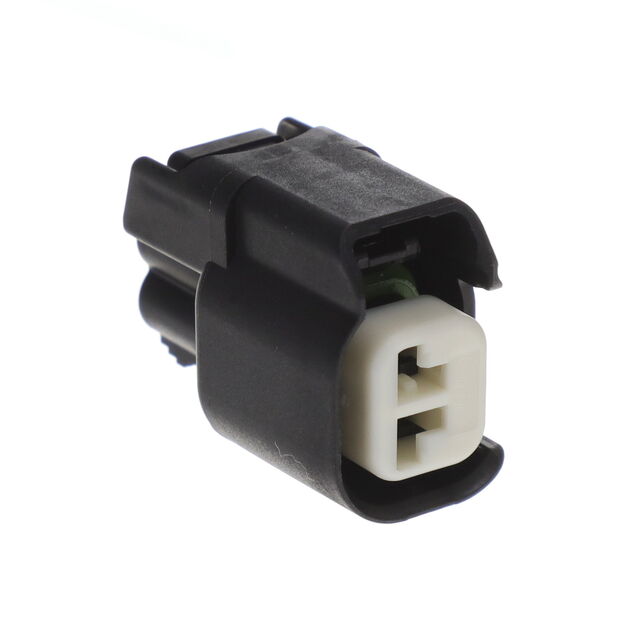

0340624004
ActiveMolex
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
0340624004
ActiveMolex
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0340624004 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polyamide (PA6), Nylon 6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
034062 Series
| Part | Pitch [x] | Pitch [x] | Number of Rows | Color | Contact Termination | Note | Features | Number of Positions | Contact Type | Mounting Type | Connector Type | Fastening Type | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 5 mm | 0.197 in | 1 | Gray | Crimp | Contacts Not Included | Terminal Position Lock (TPA) | 2 | Female Socket | Free Hanging (In-Line) | Receptacle | Latch Holder | |||
Molex | 5 mm | 0.197 in | 1 | Black | Crimp | Contacts Not Included | Connector Position Assurance (CPA) Sealed | 2 | Female Socket | Free Hanging (In-Line) | Receptacle | Latch Holder | Polyamide (PA6) Nylon 6 | 125 °C | -40 °C |
Molex | 5 mm | 0.197 in | 1 | Black | Crimp | Contacts Not Included | Connector Position Assurance (CPA) | 2 | Female Socket | Free Hanging (In-Line) | Receptacle | Latch Holder | Polyamide (PA6) Nylon 6 | 155 °C | -40 °C |
Molex | 5 mm | 0.197 in | 1 | Black | Crimp | Contacts Not Included | Terminal Position Lock (TPA) | 2 | Female Socket | Bracket Mount | Receptacle | Latch Holder | |||
Molex | 5 mm | 0.197 in | 1 | Black | Crimp | Contacts Not Included | Connector Position Assurance (CPA) Sealed | 2 | Female Socket | Free Hanging (In-Line) | Receptacle | Latch Holder | Polyamide (PA6) Nylon 6 | 125 °C | -40 °C |
Molex | 5 mm | 0.197 in | 1 | Black | Crimp | Contacts Not Included | 2 | Female Socket | Free Hanging (In-Line) | Receptacle | Latch Holder | Polyamide (PA6) Nylon 6 | 155 °C | -40 °C | |
Molex | 5 mm | 0.197 in | 1 | Black | Crimp | Contacts Not Included | Terminal Position Lock (TPA) | 2 | Female Socket | Free Hanging (In-Line) | Receptacle | Latch Holder | |||
Molex | 5 mm | 0.197 in | 1 | Black | Crimp | Contacts Not Included | Sealed | 2 | Female Socket | Free Hanging (In-Line) | Receptacle | Latch Holder | Polyamide (PA6) Nylon 6 | 125 °C | -40 °C |
Molex | 5 mm | 0.197 in | 1 | Black | Crimp | Contacts Not Included | Connector Position Assurance (CPA) | 2 | Female Socket | Free Hanging (In-Line) | Receptacle | Latch Holder | Polyamide (PA6) Nylon 6 Glass Filled | 155 °C | -40 °C |
Molex | 5 mm | 0.197 in | 1 | Black | Crimp | Contacts Not Included | Terminal Position Lock (TPA) | 2 | Female Socket | Free Hanging (In-Line) | Receptacle | Latch Holder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.97 | |
| 10 | $ 1.67 | |||
| 25 | $ 0.50 | |||
| 50 | $ 0.47 | |||
| 100 | $ 1.38 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 1.09 | |||
| 3000 | $ 1.02 | |||
Description
General part information
034062 Series
2 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
