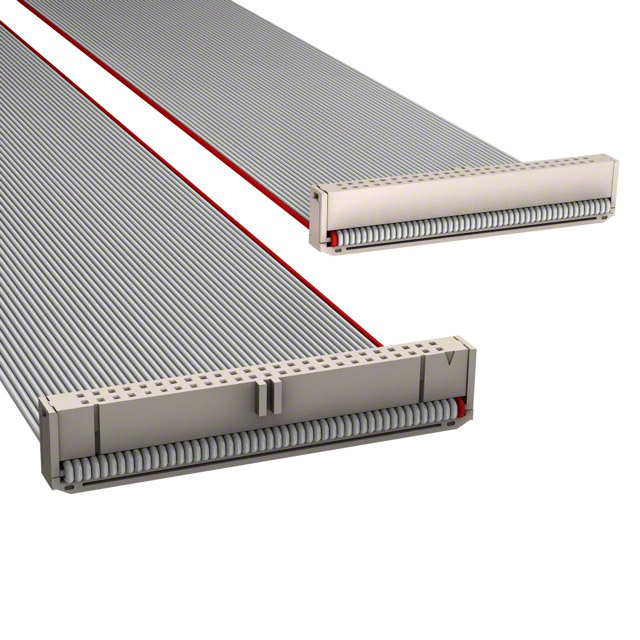

M3DDA-5018J
Active3M (TC)
IDC CABLE - MKR50A/MC50G/MKR50A
Deep-Dive with AI
Search across all available documentation for this part.
M3DDA-5018J
Active3M (TC)
IDC CABLE - MKR50A/MC50G/MKR50A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3DDA-5018J |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Polarizing Key, Strain Relief |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
M3DDA Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Color | Pitch - Cable | Pitch - Cable | Connector Type | Contact Finish | Shielding | Number of Rows | Features | Length [x] | Length [x] | Number of Positions | Cable Termination | Pitch - Connector | Pitch - Connector | Length | Length | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 0.76 Ám | 30 Áin | Multiple Ribbon | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | 457.2 mm | 1.5 ft | 60 | IDC | 0.1 in | 2.54 mm | |||||
3M (TC) | 0.76 Ám | 30 Áin | Multiple Twisted Pair (Flat) | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | 14 | IDC | 0.1 in | 2.54 mm | 1.52 m | 5 ' | |||||
3M (TC) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | 30 | IDC | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | |||||
3M (TC) | 0.76 Ám | 30 Áin | Multiple Ribbon | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | 20 | IDC | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | ||||
3M (TC) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | 914.4 mm | 3 ft | 14 | IDC | 0.1 in | 2.54 mm | ||||||
3M (TC) | 0.76 Ám | 30 Áin | Multiple Twisted Pair (Flat) | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | 14 | IDC | 0.1 in | 2.54 mm | 508 mm | 1.67 ft | |||||
3M (TC) | 0.76 Ám | 30 Áin | Multiple Ribbon | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | IDC | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | 16 | ||||
3M (TC) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | 914.4 mm | 3 ft | 26 | IDC | 0.1 in | 2.54 mm | ||||||
3M (TC) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | 457.2 mm | 1.5 ft | 50 | IDC | 0.1 in | 2.54 mm | ||||||
3M (TC) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Socket to Socket | Gold | Unshielded | 2 | Polarizing Key Strain Relief | 457.2 mm | 1.5 ft | IDC | 0.1 in | 2.54 mm | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.03 | |
| 10 | $ 10.01 | |||
| 25 | $ 9.05 | |||
| 50 | $ 8.40 | |||
| 100 | $ 7.80 | |||
| 250 | $ 7.11 | |||
| 500 | $ 6.64 | |||
| 1000 | $ 6.21 | |||
Description
General part information
M3DDA Series
50 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
Documents
Technical documentation and resources
