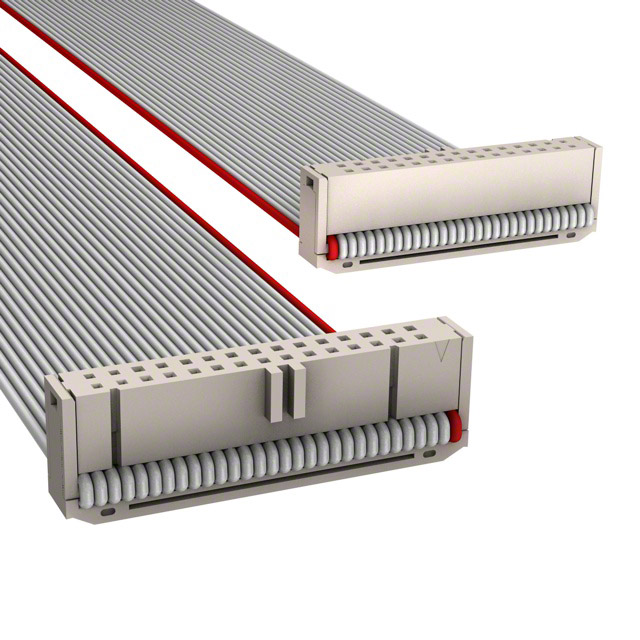

M3DDA-3006J

Active

3M (TC)

IDC CABLE - MKR30A/MC34G/MKR30A

Deep-Dive with AI

Documents3365 Series Datasheet 891 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3DDA-3006J

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	30
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3DDA Series

Part	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch - Cable	Pitch - Cable	Connector Type	Contact Finish	Shielding	Number of Rows	Features	Length [x]	Length [x]	Number of Positions	Cable Termination	Pitch - Connector	Pitch - Connector	Length	Length	Length	Length	Number of Positions
3M (TC) M3DDA-6018R	0.76 Ám	30 Áin	Multiple Ribbon	0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief	457.2 mm	1.5 ft	60	IDC	0.1 in	2.54 mm
3M (TC) M3DDA-1460K	0.76 Ám	30 Áin	Multiple Twisted Pair (Flat)	0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief			14	IDC	0.1 in	2.54 mm	1.52 m	5 '
3M (TC) M3DDA-3006J	0.76 Ám	30 Áin		0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief			30	IDC	0.1 in	2.54 mm	152.4 mm		6 "	0.5 '
3M (TC) M3DDA-2006R	0.76 Ám	30 Áin	Multiple Ribbon	0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief			20	IDC	0.1 in	2.54 mm	152.4 mm		6 "	0.5 '
3M (TC) M3DDA-1436J	0.76 Ám	30 Áin		0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief	914.4 mm	3 ft	14	IDC	0.1 in	2.54 mm
3M (TC) M3DDA-1420K	0.76 Ám	30 Áin	Multiple Twisted Pair (Flat)	0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief			14	IDC	0.1 in	2.54 mm	508 mm	1.67 ft
3M (TC) M3DDA-1606R	0.76 Ám	30 Áin	Multiple Ribbon	0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief				IDC	0.1 in	2.54 mm	152.4 mm		6 "	0.5 '	16
3M (TC) M3DDA-2636J	0.76 Ám	30 Áin		0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief	914.4 mm	3 ft	26	IDC	0.1 in	2.54 mm
3M (TC) M3DDA-5018J	0.76 Ám	30 Áin		0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief	457.2 mm	1.5 ft	50	IDC	0.1 in	2.54 mm
3M (TC) M3DDA-1618J	0.76 Ám	30 Áin		0.05 "	1.27 mm	Socket to Socket	Gold	Unshielded	2	Polarizing Key Strain Relief	457.2 mm	1.5 ft		IDC	0.1 in	2.54 mm					16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.79
		10	$ 8.28
		25	$ 7.48
		50	$ 6.94
		100	$ 6.45
		250	$ 5.87
		500	$ 5.48
		1000	$ 5.12

Description

General part information

M3DDA Series

30 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

891 Series Datasheet

Datasheet
